Influences of SO₂ in the Recirculation Flue Gas on the Iron Ore Sintering Process

Abstract

The influences of SO₂ in the recirculation flue gas on the sintering process are studied through simulating the flue gas recirculation with sinter pot test at room temperature. The results show that, with the increasing concentration of SO₂, the SO₂ is absorbed by CaO, the surface of CaO particles will generate CaSO₄ which affects the formation of binding phase, so the sinter yield and particle size will decrease. The residual sulfur in sinter ore will increase obviously when SO₂ concentration is higher than 500 ppm, the residual sulfur of middle sinter ore in 2000 ppm is 1.54 times higher than that in 500 ppm. Meanwhile, the SO₂ peak concentration in flue gas is enriched, which is conductive for the end-of-pipe treatment of SO₂. The RI of sinter ore is increased and softening and melting properties become better, because the consumption of CaO affects the formation of calcium ferrite and increases the reduction rate and melting point of sinter ore, another reason is that the decomposition of CaSO₄ leads to an increase in the porosity in the sinter, and the higher porosity makes the sinter expose more surface area to the reduced body, and the RI of the sinter increase. Therefore, adding an appropriate amount of SO₂ in the sintering process can improve the quality of the sinter, and if the SO₂ content is too high, it will affect the formation of the binder phase and reduce the strength and yield of the sinter.

1. Introduction

In recent years, with the rapid development of China’s iron and steel metallurgy industry, the problem of environmental pollution has become increasingly prominent. According to research data,¹⁾ pollutant emissions from the iron and steel metallurgy industry account for 16% of the total industrial pollutant emissions in China. There are many types of pollutants produced by the iron and steel metallurgy process, among which SO₂ is one of the most important pollutants. In the air SO₂ forms gaseous pollutants, which are inextricably linked to environmental pollution problems such as photochemical smog, ozone depletion and PM2.5, posing a serious threat to human health and ecosystems.²⁾ Therefore, the iron and steel metallurgy industry needs to strengthen environmental protection measures while pursuing economic benefits in order to realize sustainable development.

Iron ore powder sintering as the main procedure of iron and steel metallurgy, its SO₂ emissions account for 70% of the total emissions of the iron and steel production process.³⁾ At present, sintering flue gas pollutant emission reduction methods are mainly divided into three categories: source emission reduction, process control, and end-of-pipe treatment.⁴⁾ From the perspective of source emission reduction, Kang Y. et al.⁵⁾ conducted a flue gas cycle sintering cup experiment with charcoal instead of part of coke to investigate the effect of SO₂ content in the circulating flue gas on the concentration of flue gas pollutant emissions, and the results showed that it is more conducive to realize the synergistic control of sintered flue gas by using charcoal to replace 40% of the coke for the circulating flue gas sintering when the concentration of SO₂ dosing in the circulating flue gas is 500 ppm. Leonardo Tomas Da Rocha et al.⁶⁾ studied the effect of adding calcium ferrate to the sintering mix on the quality of sintered ore and SO₂ reduction, and found that the low-temperature sintering process with the addition of calcium ferrate to the sintering mix can improve the metallurgical performance of sintered ore and reduce the emission of SO₂ at the same time. Seongkyu Cho et al.^7,8) studied the SO₂ generation during the sintering process of iron ore, and found that the addition of calcined dolomite and iron oxide to the sintering mix had a certain inhibiting effect on the SO₂ generation during the sintering process. The main reasons for this phenomenon are that SO₂ in the flue gas could be absorbed by the sintering fluxes,^9,10) such as burnt lime, lime stone and slaked lime etc. And the SO₂ behavior could be described as generated, absorbed and released.¹¹⁾ Li G H et al.¹²⁾ have studied the SO₂ behavior in different sintering zones under the simulated experimental conditions, and found that the SO₂ of recirculated flue gas is absorbed by the moisture, slaked lime and molten phases in the sinter bed. From the process control point of view, Yu H et al.¹³⁾ studied the distribution of sulfur in the sintering process, and found that the sulfur enrichment in the sintering process is mainly in the preheating layer and the drying layer, and the main reaction that affects the residual sulfur is 2CaO+2SO₂+O₂=2CaSO₄, and the equilibrium temperature of the reaction rises with the increase of the concentration of SO₂ and O₂, which increases the amount of residual sulfur in the sintered ore. From an end-of-pipe perspective, In order to reduce flue gas flow and pollutants emission as well as utilize the sensible heat, the partial recycling process of sinter flue gas is developed such as EOS, LEEP, EPOSINT and so on.^{14,15,16,17,18,19)} Comparing to the conventional sintering process, the compositions of recirculated flue gas is different from the air. In order to achieve the purpose of pollutant emission reduction and at the same time reuse the sintering flue gas, the effects of O₂, CO, and CO₂ content degree on combustion and heat transfer in the sintering process have been investigated.^{20,21,22,23,24)} However, it was unclear how the sintering process was influenced by the SO₂ in recirculation gas. This paper investigates the influence of SO₂ in recirculating gas on sintering technical index, sinter metallurgical performance and pollutant emission through sinter cup test, so as to realize SO₂ emission reduction while ensuring the quality of sintered ore.

2. Experimental Method

2.1. Raw Materials

The chemical compositions of iron ore fines and fluxes used in the sintering experiments are shown in Table 1. Iron ore fines include PB, Yandi, Kooly, Carajas, and Sijiaying, fluxes include dolomite, quicklime, and limestone, and the fuel used in the experiments is coke powder whose industrial analysis and main chemical compositions are shown in Table 2.

Table 1. Chemical composition of raw materials (wt%).

Raw materials	TFe	SiO2	CaO	Al2O3	MgO	S	P	N	LOI
PB	62.14	3.52	0.06	2.19	0.06	0.017	0.100	0.07	4.66
Yandi	58.20	5.35	0.07	1.37	0.09	0.009	0.040	0.20	9.69
Kooly	60.59	3.16	0.02	1.61	0.07	0.066	0.088	0.08	7.55
Carajas	64.27	2.56	0.01	1.18	0.01	0.001	0.012	0.16	2.18
SiJiaYing	65.56	6.58	0.24	0.58	0.37	0.021	0.014	0.08	−0.39
dolomite	/	5.98	47.74	0.88	31.86	0.054	/	/	/
burntlime	/	2.58	67.89	1.58	4.13	0.270	/	/	/
limestone	/	5.06	46.68	1.10	1.73	0.160	/	/	/

Table 2. Industrial analysis and chemical composition of fuel (wt%).

Fuel	Industrial analysis				Main chemical composition
	FC	A	V	M	Al2O3	MgO	MgO	SiO2	S	N
Coke powder	86.13	12.76	1.11	/	4.26	0.5	0.094	5.64	0.87	0.39

Taking into account the sintered raw fuel composition, particle size, and sintered mix alkalinity and composition, the sintered mix formulation was developed as shown in Table 3, and the main components were shown in Table 4. After the sintering experiment, the finished sintered ore was analyzed chemically as shown in Table 5.

Table 3. Raw materials species and its ratios for sinter-pot test (wt%).

Raw materials	Ratios
PB	19.29
Yandi	15.44
Kooly	7.72
Carajas	19.29
SiJiaYing	15.46
dolomite	6.77
burntlime	2.97
limestone	8.01
Coke powder	5.05
Return fine (external)	24.787

Table 4. Main compositon of sinter mixture (wt%).

Ingredient	TFe	SiO2	CaO	MgO	Al2O3	C	S
Content/%	48.18	4.43	9.32	2.51	1.49	4.35	0.062

Table 5. Theoretical chemical composition of finished sinter (wt%).

Sinter	TFe	SiO2	CaO	MgO	Al2O3	Basicity
Content/%	56.6	4.8	9.6	2.0	1.8	2.0

2.2. Apparatus and Conditions

The schematic diagram of sinter pot test for SO₂ recirculation simulation is shown as Fig. 1. The operational parameters of sintering pot test are shown as Table 6. The height and diameter of the sinter pot are 600 mm and 300 mm respectively. The recirculation gas is simulated by mixing air with compressed SO₂ cylinders. The O₂ concentration of the air is 21%, and the N₂ is 79%. The SO₂ gas distribution concentrations during the experiment were 0 ppm, 200 ppm, 500 ppm, 1000 ppm, and 2000 ppm, and the ventilation flow rate was controlled by a flow meter at 10 L/min. After the sinter mixture is charged and ignited, the hood is placed on the sinter pot, the gap between the hood and sinter pot is sealed with the asbestos pad, then the mixing gas is introduced to the sinter pot through the pipeline and hood. After the sintering process, the flue gas is monitored by the gas analyzer, and discharged after dedust. Finally, the sintering technical indexes and metallurgical performance index of sinter ore are tested.

Fig. 1. Schematic diagram of sinter pot test for SO₂ recirculation simulation.

Table 6. Operational parameters of sintering.

Parameters	Value
Bed height	600 mm
Bed diameter	300 mm
Ignition temperature	1100°C
Ignition time	90 s
Ignition suction	6000 Pa
Sintering suction	14000 Pa
Water content	7.0%
Sinter basicity	2.0

2.3. Sintered Metallurgy Performance Indicators

Sinter metallurgical performance indexes mainly include reduction index (RI), low temperature reduction differentiation index (RDI), softening and melt drop properties.

1) reduction index (RI)



$$RI=\left(\frac{0.11w_1}{0.430w_2}+\frac{Q_1-Q_2}{Q_0\times 0.430w_2}\times 100\right)\times 100\%$$(1)

Where Q₀ (g) for the sample mass; Q₁ (g) for the reduction before the start of the sample mass; Q₂ (g) for the reduction of the sample mass; w₁ (%) for the reduction of the sample before the FeO content; w₂ (%) for the reduction of the sample before the full iron content; 0.11 for the oxidation of FeO to the corresponding amount of oxygen required Fe₂O₃ conversion coefficient; 0.430 for the oxidation of TFe all the way to the oxygen required by the conversion factor of Fe₂O₃. The reduction degree experiment is mainly to evaluate the reduction behavior of different iron-containing charges in the medium temperature zone of the blast furnace body, which is used to measure the difficulty of removing oxygen from the sintered ore.

2) low temperature reduction differentiation index (RDI)

The low temperature reduction differentiation rate is mainly a parameter to simulate the degree of fragmentation pulverization produced during the reduction of the charge located in the upper part of the blast furnace body (low-temperature zone).



$$RD{I}_{+3.15}=Q_{+3.15\mathrm{\hspace{0.17em} }mm}/Q_{total}\times 100\%$$(2)



$$RD{I}_{+6.3}=Q_{+6.3\mathrm{\hspace{0.17em} }mm}/Q_{total}\times 100\%$$(3)



$$RD{I}_{-0.5}=Q_{-0.5\mathrm{\hspace{0.17em} }mm}/Q_{total}\times 100\%$$(4)

Where: Q_{+3.15 mm} (g) is the mass of the sample with a particle size greater than 3.15 mm after the drum, Q_{+6.3 mm} (g) is the mass of the sample with a particle size greater than 6.3 mm after the drum, Q_{−0.5 mm} (g) is the mass of the sample with a particle size less than 0.5 mm after the drum, and Q_total (g) is the total mass of the sample before the drum.

3) softening and melt drop properties

The softening and melting droplet experiments mainly simulate the high-temperature reduction process of iron ore in the blast furnace in order to detect the effects of the operating conditions of the blast furnace, the formation of the soft-melting zone, and the location of its formation.

T_10% is the softening start temperature (temperature when the layer shrinkage reaches 10%), T_40% is the softening end temperature (temperature when the layer shrinkage reaches 40%), ΔT₁ is the softening temperature interval, ΔT₁=T_40% − T_10%, T_s is the melting start temperature (the temperature that sample differential pressure reaches 490 pa), ΔH_S is the shrinkage value of the height at the beginning of the melt, T_d is the drop start temperature (temperature when the first drop falls), ΔH_d is the height at the beginning of the drop of the contraction value, ΔT₂ is the temperature interval of the molten drop, ΔT₂=T_d −T_s, ΔH is the thickness of the molten drop band, ΔH=ΔH_d −ΔH_S.

2.4. Testing of Sintering Technical Indexes

Sintering production indicators mainly include vertical sintering velocity, productivity, yield and tumbling index.

1) vertical sintering velocity



$$U=h/t$$(5)

Where U (mm/min) is the vertical sintering velocity, h (mm) is the height of the sintered material layer, and t (min) is the time taken to reach the sintering end point. The vertical sintering velocity is closely related to the permeability of the sintered material layer, the sintering thermal state, the negative pressure of the extracted air and the fuel characteristics.

2) productivity



$${\eta }_a=Q/F$$(6)

Where η_a (t·m⁻²·h⁻¹) is the productivity, Q_a (t/h) is the sinter output per hour, and F (m²) is the effective air extraction area of the sinter.

3) yield



$${\eta }_{np}=Q/Q_a\times 100\%$$(7)

Where η_np (%) is the yield, Q (kg) is the total mass of finished products larger than 5 mm, and Q_a (kg) is the quality of sintered ore after burning. With the yield relative to the indicator is the return rate, the sum of the two is 1. The yield is one of the important indicators in the production of sintered ore, improve the yield can greatly improve the production efficiency.

4) tumbling index



$$TI=m_1/m_0$$(8)

where TI (%) is the tumbling index, m₀ (kg) is the mass of the specimen entering the drum, and m₁ (kg) is the mass of the specimen larger than 6.3 mm after the tumbling test.

3. Results and Discussion

3.1. Metallurgical Performance

The sinter metallurgical performance is shown in Figs. 2 and 3. As can be seen from Fig. 2, the reduction index RI shows an increasing trend with the increase of SO₂ gas distribution concentration. The reason is that with the increase of SO₂ concentration in the sintering process, more CaO reacts with SO₂, resulting in the decrease of reaction between CaO and Fe₂O₃, and the increase of Fe₂O₃ content in the sintered ore, which leads to the increase of reduction index RI. Therefore, an appropriate increase in the concentration of SO₂ gas distribution in the sintering process is favorable to improve the reduction index RI of sintered ore. Compared with the reduction degree index RI reduction pulverization index RDI change is not obvious, the analysis suggests that in the experimentally designed research scheme, although the proportion of calcium ferrite-based bonding phase in sintered ore shows a negative correlation trend with the concentration of SO₂ fluxed in, the designed scheme, the content of calcium ferrite-based bonding phase can ensure the quality of ore formation in sintered ore, and therefore the trend of its RDI change is not significant.

Fig. 2. Effect of SO₂ on RDI and RI of sinter ore.

Fig. 3. Effect of SO₂ on softening and melting properties of sinter ore. (Online version in color.)

As can be seen in Fig. 3, as SO₂ concentration increases, T_d and T_10% do not change much, T_40%, T_s, and ΔH_S rise, and ΔH_d decreases, resulting in ΔT₁ becoming larger and ΔH and ΔT₂ becoming smaller. The above indicates that adding SO₂ during the sintering process is beneficial for improving the high-temperature melting performance of the sinter. This is mainly because increasing the concentration of SO₂ will reduce the content of calcium ferrite in the sinter, resulting in a decrease in the amount of sinter slag and thus improving the permeability of the melting zone. Therefore, the SO₂ content in the intake gas has the advantage of sinter softening and melting performance. An appropriate concentration of SO₂ is not only beneficial for improving the reduction performance of the sinter but also for improving its high-temperature melting performance.

3.2. Microstructure

The analytical results of X-ray diffraction are shown in Fig. 4. From the figure, it can be seen that the sintered mineral phase mainly includes Fe₂O₃, Fe₃O₄, calcium ferrate, SiO₂, etc. The microstructure of sintered ore measured by SEM is shown in Fig. 5. When the SO₂ concentration is 0 ppm, the sintered ore is interwoven structure, and Fe₂O₃ is distributed in a skeletonized crystalline structure near the holes of the sintered ore, and when the SO₂ concentration is 2000 ppm, the microstructure of the sintered ore is a melt-eroded structure, and the flocculated Fe₂O₃ is distributed around the calcium ferrate.

Fig. 4. X-ray diffraction pattern of sinter ore.

Fig. 5. Influences of SO₂ on microscopic structure of sinter ore.

In order to have a clearer understanding of the effect of SO₂ gas distribution concentration on the change of sintered mineral phases, the results of each phase were analyzed semi-quantitatively by XPS method and the results are shown in Table 7. Compared with SO₂ gas distribution concentration of 0 ppm, when the SO₂ gas distribution concentration was 2000 ppm, the content of Fe₂O₃, Ca₂Fe₂O₅, calcium sulfate and calcium silicate increased, and the content of Fe₃O₄, CaFe₂O₄ content decreased. As shown in Table 8, Fe₂O₃ and Ca₂Fe₂O₅ are high melting point substances and CF is low melting point substance, so when the content of Fe₂O₃ and Ca₂Fe₂O₅ in the sintered ore rises and the content of CF decreases, the high melting point substance in the sintered environment increases and the low melting point substance decreases. This phenomenon leads to a rise in T_40%, ΔT₁, and T_s, and a rise in T_s leads to an increase in ΔH_S. With the increase of temperature and the reduction of Fe₂O₃ and calcium ferrite, the early slag is easy to be formed in the melting zone. Due to the high reduction index RI of the sintered ore, the initial slag contains more FeO, which makes the melting point and viscosity of the early slag decrease, and it is easy to drip, so ΔH_d decreases.

Table 7. Mineral content of sinter ore (wt%).

Phase	Fe2O3	Fe3O4	Ca2SiO4	CaSiO3	Ca2Fe2O5	CaFe2O4	CaSO4
0 ppm	22.4	16.5	8.8	7.9	11.5	24.7	0.6
2000 ppm	30.9	12.3	8.9	9.7	15.9	18.3	0.8

Table 8. Properties of mineral in sinter ore.²⁵⁾

Phase	Fe2O3	Fe3O4	Ca2Fe2O5	CaFe2O4
Melting Point, °C	1536	1590	1436	1216
Reduction Rate, %	49.9	26.7	28.5	40.1

3.3. Sintering Technical Indexes

The influence of SO₂ dosing concentration on sintering technical indexes is shown in Fig. 6. With the increase of SO₂ dosing concentration, the vertical sintering speed first becomes larger and then smaller, and the sintering productivity is also affected by the vertical sintering speed, which shows the trend of first increasing and then decreasing. The reason is that the vertical sintering speed is mainly affected by the permeability of the sinter bed, and the permeability of the sinter bed is affected by the SO₂ concentration in the combustion environment, and an appropriate increase in the concentration of SO₂ gas distribution will reduce the content of calcium ferrite in the sintered ore, leading to a decrease in the amount of sintered slag, which improves the penetration rate of the melting zone and accelerates the vertical sintering speed. When the SO₂ concentration in the combustion environment is too high, ΔT₁ rises, the permeability of the sintered bed deteriorates, and the vertical sintering speed decreases.

Fig. 6. Effect of SO₂ on sintering technical indexes. (Online version in color.)

From the Fig. 6, it can be seen that the sintered ore yield decreases with the increase of SO₂ concentration, and it is analyzed that both SO₂ and Fe₂O₃ are easy to react with CaO in high temperature environment, so SO₂ in the circulating flue gas is easily absorbed by CaO in the sintering flux, and CaSO₄ is generated on the surface of CaO particles, which is difficult to decompose at high temperature, so that the generation of calcium ferrite bonding phase decreases and the sintered ore The bonding force is reduced and fragile, thus affecting the sintered ore yield.

In order to further verify the effect of SO₂ content on the strength of sintered ore during the sintering process, the sintered ore was dropped and sieved through sieves with different apertures, and the particle size distribution of the sintered ore was determined according to the content of sintered ore on sieves with different apertures as shown in Fig. 7. It can be seen from the figure that the SO₂ content has a certain effect on the particle size distribution of the sintered ore, and the main particle size ranges from 25 to 40 mm when the SO₂ content is 0 ppm and 5–10 mm and 10–16 mm with the increase of SO₂ content. With the increase of SO₂ content, the main particle size range is concentrated in 5–10 mm, 10–16 mm, analyzing the reason: The CaO contained in raw materials has certain effect on sulphur fixation. With the increase of SO₂ dosing, more CaO participates in the sulfur fixation reaction (2CaO + 2SO₂ + O₂ = 2CaSO₄), which reduces SO₂ emission, while the sintered ore has less bonded phase, which reduces the room-temperature strength of the sintered ore,²⁶⁾ and therefore the sintered ore is more likely to be split into smaller sizes when falling through the sieve, so that in practice, we can control the SO₂ concentration to improve the sintered ore quality.

Fig. 7. Effect of SO₂ on size distribution of sinter ore. (Online version in color.)

3.4. Residual Sulfur

According to the different temperature levels and physico-chemical changes of the sintering process, the sintered material layer is classified into four states, as shown in Fig. 8. The fourth stage is the sintered ore layer stage, in which, after the sintering process is finished and the sintered ore is gradually cooled down, samples are taken from the upper, middle and lower layers of the sintered ore to determine the sulphur content, and the overall sulphur content of the sintered ore is roughly calculated from the sulphur content of each layer of the sintered ore.

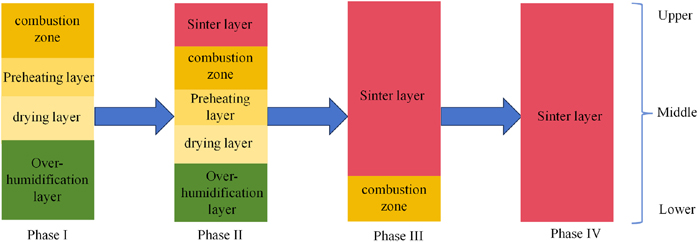

Fig. 8. Sintered material layer change process diagram. (Online version in color.)

As can be seen from Fig. 9, for the middle layer sintered ore, the SO₂ dosing concentration of 2000 ppm corresponds to a residual sulfur amount that is 1.54 times that of 500 ppm. As can be seen from Fig. 10, when the SO₂ dosing concentration is lower than 200 ppm, the residual sulfur amount in the sintered ore does not change significantly. When the SO₂ dosing concentration is higher than 500 ppm, the amount of residual sulfur increases with the increase of SO₂ dosing concentration. The reason was analyzed as follows: with the increase of SO₂ dosing concentration, there was more and more SO₂ in the reaction environment, and a large amount of SO₂ would react with CaO to generate CaSO₄,¹⁴⁾ and according to the results of thermogravimetric-differential thermal analysis (TGA-DSC) of CaSO₄,²⁷⁾ below 1200°C, CaSO₄ has a very high thermal stability and is not easy to be decomposed, so the undecomposed CaSO₄ is easy to stay in the sintered ore. The residual sulfur of sintered ore rises.

Fig. 9. Effect of SO₂ on residual sulfur content in various layers of sintered ore. (Online version in color.)

Fig. 10. Effect of SO₂ on residual sulfur content of sintered ores.

As can be seen from Fig. 11, the input of sulfur mainly comes from SO₂ in the distribution gas and sintering mixture, and the output of sulfur mainly comes from the amount of residual sulfur in the sintered ore, SO₂ in the sintered flue gas, sintered ore return, dust, etc. The sulfur content of the sintered ore and sintered flue gas increases with the increase of SO₂ concentration. As can be seen from Fig. 12, with the increase of SO₂ gas distribution concentration, sintered ore residual sulfur and sintered flue gas sulfur content on the whole show a rising trend. When the concentration of SO₂ gas distribution is more than 500 ppm, the sulfur content in the sintered flue gas rises rapidly. The reason is that with the increase of SO₂ concentration in the sintered flue gas, part of SO₂ will react with CaO to form CaSO₄, and the other part of SO₂ that is not involved in the reaction will be discharged with other sintered flue gas. It can be observed from Figs. 2 and 3 that the reduction index RI and the softening and melting characteristics of the sintered ore show an improvement trend with the increase of SO₂ distribution gas concentration. In summary, a moderate SO₂ gas distribution concentration can improve the quality of sintered ore while controlling the concentration of SO₂ emission in the flue gas.

Fig. 11. The sulphur balance chart of the sinter-pot test. (Online version in color.)

Fig. 12. Changes in sinter flue gas sulfur content and residual sulfur in sinter ore. (Online version in color.)

3.5. SO₂ Concentration in Flue Gas

The SO₂ concentration in flue gas is shown as Fig. 13. The SO₂ emission profile is similar at different SO₂ concentration in inlet gas, and the peak concentration of SO₂ in flue gas is improved with increasing SO₂ concentration in inlet gas. When the SO₂ concentration in inlet gas vary from 0 ppm to 2000 ppm, the peak concentration of SO₂ in waste gas increase from 1156 ppm to 2859 ppm. The reason is that the production of CaSO₄ is increased with the increasing SO₂, when the combustion layer reaches to the bottom, more SO₂ enters into the flue gas because of the decomposition of CaSO₄ in combustion layer. It indicates that the SO₂ concentration in flue gas could be enriched through the flue gas recirculation, which is beneficial for the end-of-pipe treatment of SO₂.

Fig. 13. Effect of SO₂ in inlet gas on SO₂ concentration in flue gas. (Online version in color.)

3.6. Influence Mechanism

As shown in Fig. 14, the sinter mixture is mixed by iron ore fines, fluxes and coke breeze, the SO₂ flows with the inlet gas. Before the combustion of coke breeze, the SO₂ react with CaO generating CaSO₄ on the surface, meanwhile, the solid-phase reaction is occurred between the iron ore fines and fluxes generating low melting point materials, such as calcium ferrite. After the combustion, the temperature rise to 1300–1400°C, the products of solid-phase reaction is melting and liquid phase is generated, meanwhile the CaSO₄ begins to decompose. The melting point of CaSO₄ and Fe_xO is high, so the undecomposed CaSO₄ and unreacted Fe_xO is distributed in the liquid phase. Moreover, many pores are exist in liuid phase because of the SO₂ release from the decomposition of CaSO₄, as well as the cooling shrinkage.

Fig. 14. Schematic diagram for influence of SO₂ on sintering process.

It suggests that the higher the SO₂ concentration in inlet gas, the more CaO is consumed, which result in the reduction of calcium ferrite and liquid content, and increase of Fe_xO. Therefore, the adhesion of binding phase become weaken, and the sinter ore is fragile in the shatter test, which result in that the yield is low and the grain size is small. In addition, more CaSO₄ is generated, so the SO₂ peak concentration is higher after the decomposition of CaSO₄, which is shown as Fig. 13, and the decomposition of CaSO₄ also increase the porosity of sinter ore which is considerd to be another reason that increase the RI and ΔH_S The undecomposed CaSO₄ stay in sinter ore as residual sulfur and rise the content, which is shown as Fig. 10.

4. Conclusions

Influences of the SO₂ content in inlet gas on sintering process are researched at room temperature, to provide technical guidance for the waste gas recirculation technology. The following conclusions were obtained:

(1) With increasing SO₂ concentration, the sinter yield and particle size is decreased because the SO₂ is absorbed by CaO and CaSO₄ is generated on the surface of CaO particles, which affects the formation of binding phase, Therefore, adding the right amount of sulfur dioxide to the sintering process can help improve the quality of the sinter, and if the amount of sulfur dioxide is excessive, it will reduce the quality of the sinter.

(2) The residual sulfur in sinter ore increases obviously when SO₂ concentration is higher than 500 ppm, the residual sulfur of middle sinter in 2000 ppm is 1.54 times higher than that in 500 ppm, this is mainly because with the increase of SO₂ concentration in the reaction environment, the CaO produced by the decomposition of CaSO₄ will undergo a secondary reaction with excess SO₂, resulting in incomplete decomposition of CaSO₄ and an increase in residual sulfur content in the sinter.

(3) The SO₂ emission profiles are similar at different SO₂ concentration in inlet gas, while the SO₂ peak concentration in flue gas is increased with the increasing SO₂, this is beneficial for the end-of-pipe treatment of SO₂.

(4) The consumption of CaO reduces the amount of calcium ferrate produced and leads to an increase in the Fe₂O₃ content, melting point and reduction rate during sintering. In addition, the decomposition of CaSO₄ could increases the porosity in sinter ore. Therefore, the RI is increased and softening and melting properties become better with increasing SO₂ concentration.
