2018 年 64 巻 2 号 p. 46-53
Cancer vaccines and immune checkpoint inhibitors (ICI) have recently been employed as immunotherapies for esophageal squamous cell carcinoma (ESCC). Cancer vaccines for ESCC have yielded several promising results from investigator-initiated phase I and II clinical trials. Furthermore, a Randomized Controlled Trial as an adjuvant setting after curative surgery is in progress in Japan. On the other hand, ICI, anti-CTLA-4 mAb and anti-PD-1 mAb, have demonstrated tumor shrinkage and improved overall survival in patients with multiple cancer types. For ESCC, several clinical trials using anti-PD-1/anti-PD-L1 mAb are underway with several recent promising results. In this review, cancer vaccines and ICI are discussed as novel therapeutic strategies for ESCC.
A multidisciplinary treatment, including surgery, chemotherapy, and radiotherapy, has been performed for esophageal squamous cell carcinoma (ESCC)1-3), however, the 5-year global survival is still poor at 30-40 %4). Therefore, it is an urgent task to further improve surgical techniques and chemoradiation strategies, and to develop novel therapeutic strategies including molecular target therapy and immunotherapy.
Recent studies have identified several immunogenic cancer antigens (ICA) expressed on ESCC cells5,6) and clinical trials of cancer vaccines using such ICA have been performed for ESCC. Although results are still challenging as a single agent7,8), there are several promising results from investigator-initiated phase I and II clinical trials. Furthermore, based on these encouraging results, a Randomized Controlled Trial (RCT) as an adjuvant setting after curative surgery is in progress in Japan9).
Immune checkpoint inhibitors (ICI) such as anti-CTLA-4 mAb (ipilimumab) and anti-PD-1 mAb (nivolumab and pembrolizumab) have demonstrated tumor shrinkage and improved overall survival in patients with multiple cancer types, leading to renewed enthusiasm for cancer immunotherapy. For ESCC, several clinical trials using anti-PD-1 mAb, nivolumab, are in progress with several recent promising results9,10). Furthermore, an RCT has been initiated as a 1st line treatment for ESCC (CheckMate 649).
In this review, cancer vaccines and ICI are discussed as novel therapeutic strategies for ESCC.
Since ICA were identified, translational research for the characterization of cancer antigen-specific cytotoxic T lymphocytes (CTL) in cancer patients has been conducted globally. Cancer vaccine is a strategy that effectively induces cancer antigen-specific CTL using ICA in vivo (Fig. 1). Ideal characteristics of ICA for cancer vaccines are: (i) high immunogenicity, (ii) common and specific expression in cancer cells, and (iii) essential molecules for cancer cell survival. There are several types of ICA preparations such as: (i) synthetic tumor-associate antigens (TAA), (ii) whole tumor lysates, and (iii) TAA-encoding vectors. For cancer vaccination, we directly inoculate these ICA alone or dendritic cells (DC) loaded with TAA as well as fusion proteins11-13).
Although many clinical cancer vaccine trials for malignant tumors including ESCC have been performed7-9,14-18), unfortunately, only one cell-based vaccine, sipuleucel-T (Provenge®), was clinically approved by FDA for patients with metastatic hormone-refractory prostate cancer in 201019). To enhance the clinical effects of cancer vaccines, it may be necessary to develop new approaches such as the combination therapy with ICI to enhance effect of cancer antigen-specific CTL and the multiple ICA approach derived from the different target molecules to overcome heterogeneity of cancer cells20,21). We have recently began the development of a cancer vaccine with DC loaded with multiple TAA, which can simultaneously stimulate CD4- and CD8-positive T cells, since CD4-positive helper T cells enhance the induction and function of cancer antigen-specific CTL (Fig. 1).
Schematic tumor immune response and mechanisms of ICI. Figure modified from Mimura K et al.48) with permission from Japanese Journal of Cancer and Chemotherapy.
Clinical trials of cancer vaccines using peptides for esophageal cancer are summarized in Table 1. No cancer vaccine has been approved for clinical use for ESCC. Recently we have shown novel ICA including TTK protein kinase (TTK), lymphocyte antigen 6 complex locus K (LY6K), insulin-like growth factor (IGF)-II mRNA binding protein 3 (IMP-3), cell division cycle-associated protein 1 (CDCA1), and KH domain-containing protein overexpressed in cancer 1 (KOC1)7,8). Since these ICA, which are derived from different Cancer-Testis antigens, are highly and frequently expressed, and are essential molecules for survival and proliferation in ESCC, we thought that they would be promising targets for cancer vaccine against ESCC7,8). We therefore identified three HLA-A24-restricted immunodominant peptides that were derived from TTK, LY6K, and IMP3. We then performed phase I and II clinical trials of the cancer vaccine with a combination of these three peptides in HLA-A*2402 (+) patients with advanced ESCC who had failed to standard therapy7,8). In our phase II clinical trial, patients with immune response induced by the vaccination showed better prognosis than those with no immune response7).
Based on the same strategy, two clinical trials of cancer vaccine with three immunodominant peptides derived from LY6K, CDCA1, and KOC1, are in progress as adjuvant setting. Yasuda T et al. reported that a group receiving cancer vaccine has a better relapse-free survival in comparison to a group not receiving cancer vaccine22) Furthermore, Shionogi, a pharmaceutical company in Japan, is performing a phase III clinical trial of cancer vaccine in an adjuvant setting after curative surgery for esophageal cancer to obtain an approval as a drug9).

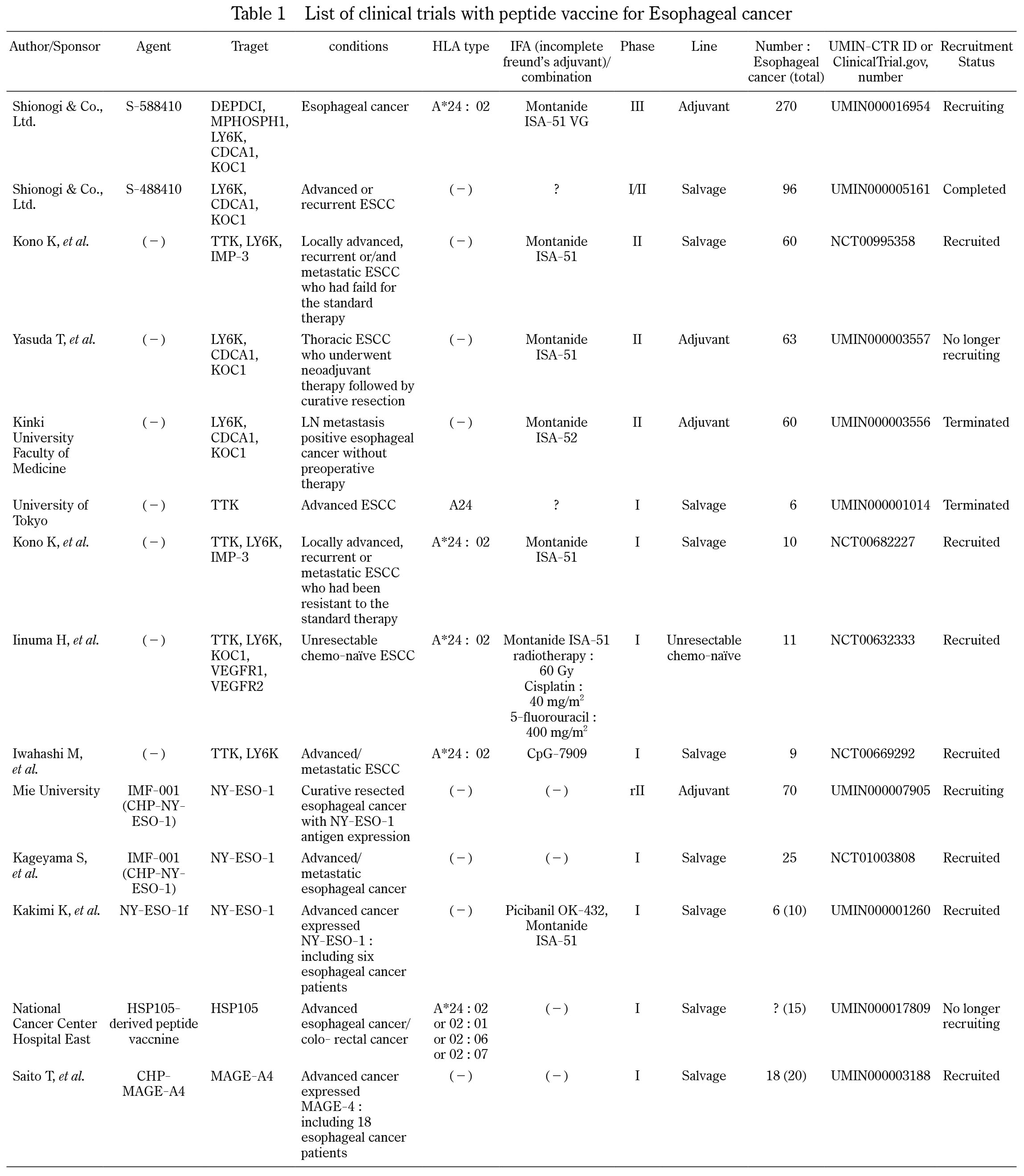

List of clinical trials with peptide vaccine for Esophageal cancer
In an interaction between T cells and cancer cells, the T-cell response is regulated by a balance between activating and inhibitory signals in T cells. These signals are currently called the immune checkpoints23,24). Two immune checkpoint receptors, cytotoxic T-lymphocyte-associated antigen 4 (CTLA-4) and programmed cell death protein 1 (PD-1), have recently been actively investigated. Both receptors are expressed on T cells where they induce inhibitory signals (Fig. 1).
CTLA-4 counteracts and inhibits CD28, which is an activating T cell co-stimulatory receptor, and fundamentally regulates the induction phase of T cell activation25). Although CD28 signaling strongly enhances T cell receptor signaling and leads to activation of T cells, CTLA-4 inhibits the activity of CD28, resulting in inactivation of T cells25). In 2010, the FDA approved the anti-CTLA-4 mAb, ipilimumab, as the first ICI for metastatic melanoma26).
PD-1 interacts with programmed death-ligand 1 (PD-L1) on cancer cells and immune cells. PD-1/PD-L1 signals reduce cytotoxic function of CTL and induce apoptosis of CTL27,28). PD-L1 is an inhibitory B7 family member and up-regulation of PD-L1 has been reported in various types of human cancer including ESCC and immune cells23,29,30). Currently, two anti-PD1 mAbs, nivolumab and pembrolizumab, are available for clinical use for several types of cancer. They have shown significant and durable responses in several types of refractory tumors including in 31% of patients with melanoma, 29% with kidney cancer and 17% with lung cancer31-33). Furthermore, recently, two anti-PD-L1 mAbs, avelumab and atezolizumab, are approved for clinical use in Japan. Avelumab is available for unresectable merkel cell carcinoma and atezolizumab is available for unresectable progressive / recurrent non-small cell lung cancer respectively.
CTL induction and infiltration in vivoSince anti-CTLA-4 mAb mainly activates T cells in the induction phase and anti-PD-1/anti-PD-L1 mAb enhances CTL function in the effector phase (Fig. 1), CTL induction and infiltration in vivo is very crucial to enhance the clinical effects of ICI. In order to efficiently induce CTL in vivo, ICA and activation of DC, which can phagocytize and present ICA, are regarded important.
Neoantigens have recently been proposed as candidates for ICA to efficiently induce CTL in vivo34). Neoantigens are formed by peptides that are entirely absent from the normal human genome; they are solely created by cancer specific DNA alterations in cancer cells, resulting in the formation of novel protein sequences. Several ICI clinical trials have been reported confirming the significant correlations between clinical response and burden of mutation-derived neoantigens, suggesting that a part of the cancer was eliminated by neoantigen specific CTL activated by ICI34).
The concept of immunogenic tumor cell death (ICD) was proposed by Apetoh et al.35). In ICD, DC were activated by danger signals such as high mobility group box 1 (HMGB1) and calreticulin released by dying cells. The activated DC could then efficiently phagocytize and present cancer antigens, resulting in CTL induction35). We showed that chemoradiation could induce up-regulation of local HMGB1 and cancer antigen-specific CTL in ESCC patients36). Furthermore, our in vitro study showed that HMGB1 was produced following chemoradiation in a panel of ESCC cell lines36). The abscopal effect is rare phenomenon where local irradiation on the tumor causes regression of metastases at sites distant from the irradiated area37). This effect is a rare phenomenon but has been shown in several types of malignant tumors, including melanoma, lymphoma, hepatocellular carcinoma and renal cell carcinoma38,39). Although its mechanism has not been completely elucidated40), there is a possibility that the abscopal effect is induced by the ICD process.
Current status of ICI for ESCCThe clinical trials of anti-PD-1/anti-PD-L1 mAb for esophageal cancer are summarized in Table 2. Focusing on clinical trials for ESCC, there are phase II and III clinical trials of nivolumab. In the phase II clinical trial, patients with ESCC who were refractory or intolerant to standard chemotherapy were recruited (n=65) and the design was single-arm as a second line setting10). As a result of this trial, the objective response rate (complete response [CR] and partial response [PR]) and disease control rate (CR, PR, and stable disease [SD]) were seen in 14% and 42% of the enrolled patients, respectively, and the adverse event profile was acceptable10).
Following the promising results from the phase II clinical trial of nivolumab for ESCC, a phase III clinical trial as a salvage setting was started. In total, 390 advanced or recurrent ESCC patients, who were refractory to 5FU + CDDP-based chemotherapy, were enrolled and randomly assigned into either a nivolumab or paclitaxel/docetaxel group (NCT02569242). The primary endpoint of this trial is overall survival (OS) and the results are expected to be released in 2020. Furthermore, enrollment is currently underway for a new RCT as a 1st line setting for ESCC (CheckMate 649). In this trial, inoperable advanced or recurrent ESCC patients will be randomly assigned into three groups: nivolumab + ipilimumab, 5FU + CDDP + nivolumab, and 5FU + CDDP.
List of clinical trials with anti-PD-1/anti-PD-L1 mAbs for Esophageal cancer
It is assumed that anti-PD-1/anti-PD-L1 mAb will be key drugs for immunotherapy for ESCC. As described above, anti-PD-1/anti-PD-L1 mAb enhance CTL function in the effector phase (Fig. 1). If there are tumor infiltrating lymphocytes (TIL) in the tumor microenvironment, CTL should be present. From the view point of expected clinical effects of anti-PD-1/anti-PD-L1 mAb, several articles including ours suggested that the tumor microenvironment can be subclassified into 4 types: CTL(+) and PD-L1(+) on cancer cells, CTL(+) and PD-L1(－), CTL(－) and PD-L1(+), and CTL(－) and PD-L1(－) (Fig. 2)41,42). We speculate that optimum clinical effects of anti-PD-1/anti-PD-L1 mAb can be obtained from the tumor microenvironment like as CTL(+) and PD-L1(+). This suggests that it is important to increase CTL infiltration in the tumor microenvironment before administration of anti-PD-1/anti-PD-L1 mAb.
Anti-CTLA-4 mAb, cancer vaccine, and chemoradiation have a potential to induce CTL infiltration in vivo because anti-CTLA-4 mAb mainly activates T cells in the induction phase to induce CTL (Fig. 1) and the cancer vaccine induces cancer antigen-specific CTL. Furthermore, we showed that chemoradiation could induce cancer antigen-specific CTL in ESCC patients36). Some cytotoxic drugs or molecular target drugs are also thought to induce ICD, resulting in CTL induction43,44). In addition, since activated CTL produce IFN-γ, activated CTL in the tumor microenvironment could induce PD-L1 expression on cancer cells through the effect of IFN-γ. Our next challenge is the clinical development of combinatorial approaches, using anti-PD-1/anti-PD-L1 mAb with treatments to induce CTL. In animal models and pre-clinical data, a strong synergy was observed between cancer vaccine and ICI, anti-CTLA-4 mAb and anti-PD-1 mAb45,46). Moreover, it was reported that a combination of anti-CTLA-4 mAb with anti-PD-1 mAb led to rapid tumor regression in almost a third of melanoma patients47).
Collectively, ESCC has biological characteristics suitable for immunotherapy, such as high frequency of neoantigens, radio-sensitive tumor, and several identification of ICA. We suggest that a combination of anti-PD-1/anti-PD-L1 mAb with treatments to induce CTL including anti-CTLA-4 mAb, cancer vaccine, chemoradiation, and cytotoxic and/or molecular target drugs, may be an ideal and reasonable strategy for ESCC therapy.
Four subclassifications of tumor microenvironments from the view point of expected clinical effects of anti-PD-1/anti-PD-L1 mAb. Figure modified from Mimura K et al.41) with permission from Japanese Journal of Cancer and Chemotherapy.
All authors have no conflict of interest in this study. All procedures in this study were in accordance with the ethical standards of the responsible committee on human experimentation at Fukushima Medical University and with the Helsinki Declaration.
