Partial Anomalous Pulmonary Venous Connection With Left Atrial Drainage of the Superior Vena Cava

Partial anomalous pulmonary venous connection (PAPVC) is generally an acyanotic congenital heart disease. We herein describe two surgical cases of cyanotic PAPVC with bilateral or left atrial (LA) drainage of the superior vena cava (SVC). Previous reports on bilateral or LA drainage of SVC have failed to discuss the locations of the sinus node (SN).

Patient 1, a 9-month-old boy (body weight, 8.9 kg) with cyanosis, was diagnosed with LA drainage of the SVC as seen on echocardiography. On computed tomography (CT) and echocardiography, the right upper pulmonary veins (RUPV) were connected to SVC (Figure 1A); on preoperative catheterization, left ventricular end-diastolic volume (LVEDV) was 73.7% of normal; LV ejection fraction (EF), 68.0%; right ventricular (RV) EDV, 56.8% of normal; RVEF, 52.0%; LV pressure, 68/8 mmHg (systolic/end-diastolic); RV pressure, 25/7 mmHg; pulmonary vascular resistance (PVR), 3.45 u·m²; pulmonary to systemic blood flow ratio (Qp/Qs), 0.61; and oxygen saturation in the ascending aorta (SaO₂), 80.1% (inspired oxygen, 21%; Figure 2A). Preoperative electrophysiological studies (EPS) showed that the SN was located in the medial side of the right atrial appendage (RAA; Figure 2B). Although PAPVC repair was performed with SVC reconstruction according to the modified Warden procedure,¹ the SVC was anastomosed to the lateral side of the right atrium (RA) using the RA wall flap and autologous pericardium patch to prevent SN injury (Figures 1C–E,2C). The slit-like (pinhole) sinus venosus-type atrial septal defect (ASD) was directly closed; intra-atrial rerouting was not necessary (Figure S1A). The patient had an uneventful recovery; postoperative CT showed no stenotic SVC-RA or RUPV-LA routes (Figure 1B).

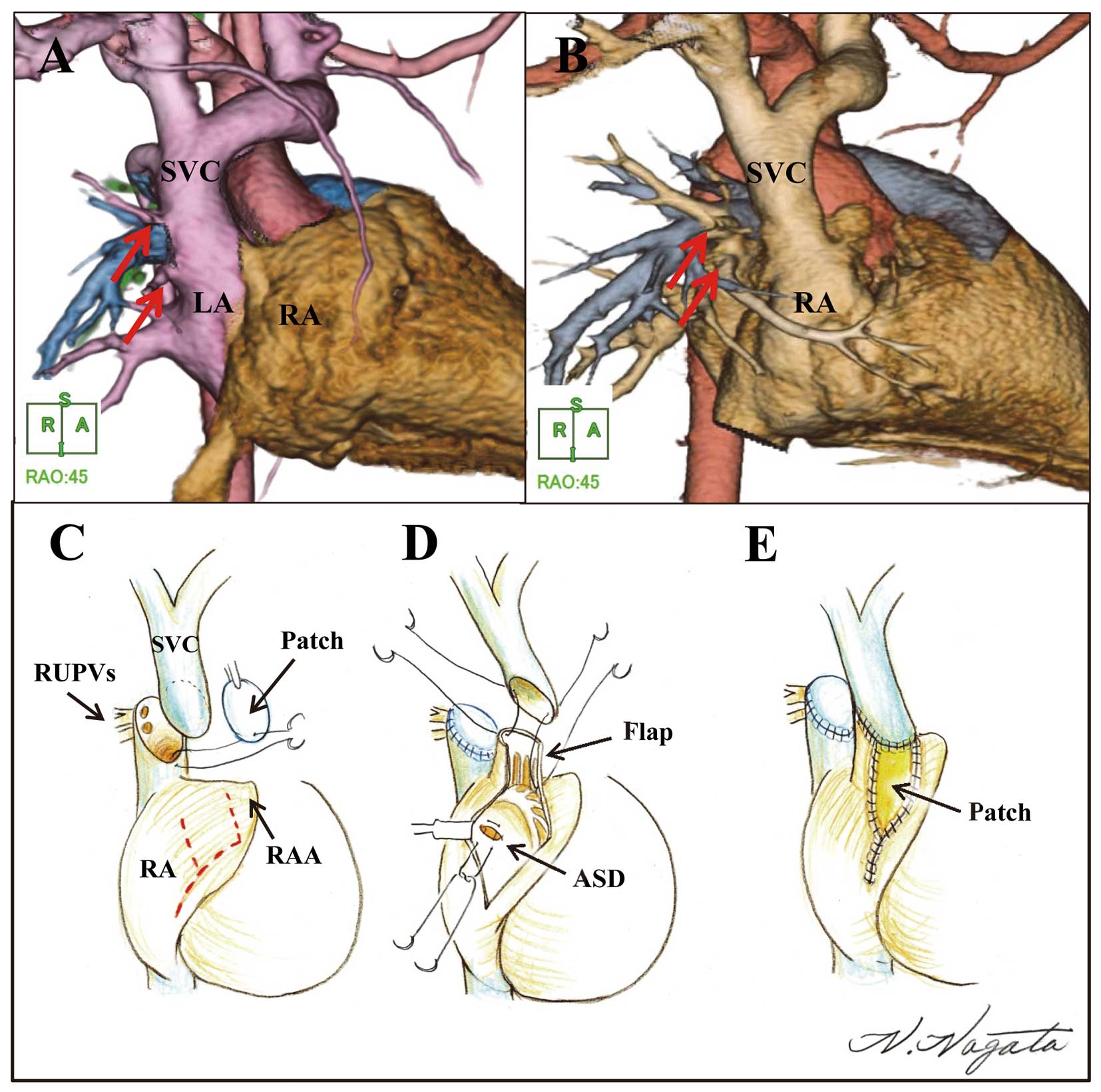

Figure 1.

(A,B) Preoperative and postoperative three-dimensional computed tomography, right anterior oblique view, and (C–E) surgical procedure in patient 1. (A) The right upper pulmonary veins (RUPV; red arrows) are connected to the superior vena cava (SVC). (B) No stenotic SVC-right atrium (SVC-RA) and RUPV-left atrium (RUPV-LA) routes were revealed; RUPV, red arrows. (C) All branches between the confluence of the subclavian vein and the most proximal side of the SVC were resected as far as possible; SVC was easily mobilized. SVC was then obliquely transected and the proximal side of SVC closed using autologous pericardial patch. (D) The distal side of the SVC was anastomosed to the lateral side of the RA using the RA wall flap; the slit-like sinus venosus-type atrial septal defect (ASD) was closed directly. (E) After anastomosing the distal portion of SVC and the RA wall flap, the deficit was filled with autologous pericardial patch; the RUPV-LA and SVC-RA routes were reconstructed. Patch, autologous pericardial patch; RAA, right atrial appendage.

Figure 2.

Preoperative superior vena cava (SVC) (A) angiography (lateral view), (B) electrophysiological studies (left posterior oblique view), and (C) intraoperative findings. (A) Left atrial (LA) drainage of SVC (white arrow). (B) The sinus node (SN) is located on the medial side of the base of the right atrial appendage (RAA) (blue arrow). (C) White spot located on the medial side of the base of RAA (blue arrows) that may be SN. IVC, inferior vena cava; RA, right atrium.

Patient 2, a 7-year-old girl (body weight, 20.5 kg) with cyanosis was diagnosed with bilateral atrial drainage of the SVC. On CT and echocardiography, the RUPV were connected to the SVC (Figure S2A). On preoperative catheterization, LVEDV was 77.7% of normal; LVEF, 71.5%; RVEDV, 73.3% of normal; RVEF, 62.9%; LV pressure, 84/9 mmHg; RV pressure, 24/7 mmHg; PVR, 1.68 u·m²; Qp/Qs, 0.99; and SaO₂, 85.8% (inspired oxygen, 21%). PAPVC repair with SVC reconstruction was performed. In this procedure, the proximal SVC was longitudinally incised; an autologous pericardial patch was anastomosed around the RUPV and LA orifices (Figures S1B,S2C,D). Because of the small size of the SVC-RA orifice, the ridge line of the RA was incised from the top of the RAA toward the SVC-RA junction, and then the SVC incision covered with the RAA flap (double-decker route), thereby preserving the SN artery (Figure S2E). The patient had an uneventful recovery; postoperative CT showed no stenotic SVC-RA or RUPV-LA routes (Figure S2B).

Bilateral or LA drainage of the SVC is one of the rarest anomalies. Van Praagh et al hypothesized that intra-atrial communication in the presence of sinus venosus defects does not indicate a defective atrial septa, but indicates that the LA orifices of RUPV have been unroofed into the SVC.² They also noted that the orifices of the unroofed RUPV form abnormal connections between SVC and LA. In these cases, the SVC-RA orifice was smaller than the SVC-LA orifice. In particular, in the present report, patient 1 had a slit-like ASD (SVC-RA orifice), whereas RUPV was unroofed in patient 2 and was repaired using autologous pericardial patch.

In both patients, preoperative catheterization showed a slightly low volume load of the left heart and a further lower volume load of the right heart. In general, the underlying prevalence of the patent foramen ovale (PFO) was not so low,³ and the patients with PFO/ASD presented high-volume load of the atriums. However, in the patient with LA drainage of SVC, the low-volume load of both atriums did not contribute to stretched PFO/ASD, and non-stretched PFO/ASD may hardly affect hemodynamics and oxygenation. In addition, it is less flexible for small RA (low-volume load) to reconstruct the SVC-RA route in PAPVC with LA drainage of SVC cases than ordinary PAPVC cases.

In the present study, preoperative assessment indicated that patient 1 would need complete reconstruction of the SVC. Previous reports on imaging and surgical repair of bilateral or LA drainage of SVC, however, failed to indicate the location of SN.^4,5 Therefore, taking into account the risks and benefits of cardiac catheterization,⁶ and postoperative sick sinus syndrome and following atrioventricular block,⁷ preoperative EPS was performed. This showed, unexpectedly, that SN was located on the medial side of RAA, and intraoperative findings were in accordance with this. Therefore, SVC reconstruction was performed with anastomosis to the lateral side of RA.

Preoperative assessment of patient 2 enabled reconstruction of the SVC-RA route using the original SVC-RA orifice; we assumed that the SN artery ran on the anterior side of the SVC-RA junction. Therefore, on the basis of a report by Yamagishi et al, SVC reconstruction was performed using the double-decker route, thereby preserving the SN artery.⁸ Both patients had uneventful recovery without arrhythmia.

The present rare but successful surgical cases of PAPVC with bilateral or LA drainage of SVC illustrate the importance of careful preoperative assessment and selection of surgical technique in order to avoid SN injury.

Supplementary Files

Supplementary File 1

Figure S1. Intraoperative findings of atrial septal defect (ASD): surgeon’s view.

Figure S2. (A,B) Preoperative and postoperative three-dimensional computed tomography, right anterior oblique view, and (C–E) surgical procedure in patient 2.

Please find supplementary file(s);

http://dx.doi.org/10.1253/circj.CJ-16-0376

References

• 1.    Warden  HE,  Gustafson  RA,  Tarnay  TJ,  Neal  WA. An alternative method for repair of partial anomalous pulmonary venous connection to the superior vena cava. Ann Thorac Surg 1984; 38: 601–605.
• 2.    Van Praagh  S,  Geva  T,  Lock  JE,  Nido  PJ,  Vance  MS,  Van Praagh  R. Biatrial or left atrial drainage of the right superior vena cava: Anatomic, morphogenetic, and surgical considerations: Report of three new cases and literature review. Pediatr Cardiol 2003; 24: 350–363.
• 3.    Kuramoto  J,  Kawamura  A,  Dembo  T,  Kimura  T,  Fukuda  K,  Okada  Y. Prevalence of patent foramen ovale in the Japanese population: Autopsy study. Circ J 2015; 79: 2038–2042.
• 4.    Arora  G,  Carlson  KM,  Neish  SR. Anomalies of systemic venous return: Right superior vena cava draining to the left atrium. Pediatr Cardiol 2005; 26: 115–116.
• 5.    Oppido  G,  Pace Napoleone  C,  Turci  S,  Giardini  A,  Formigari  R,  Angeli  E, et al. Right superior vena cava draining in the left atrium: Anatomical, embryological, and surgical considerations. Ann Thorac Surg 2006; 81: 2313–2315.
• 6.    Mori  Y,  Takahashi  K,  Nakanishi  T. Complications of cardiac catheterization in adults and children with congenital heart disease in the current era. Heart Vessels 2013; 28: 352–359.
• 7.    Hosoda  J,  Ishikawa  T,  Sumita  S,  Matsushita  K,  Matsumoto  K,  Kimura  Y, et al. Development of atrioventricular block and diagnostic value of stored electrograms in patients with sick sinus syndrome and implanted pacemaker. Circ J 2015; 79: 1263–1268.
• 8.    Yamagishi  M,  Fujiwara  K,  Yaku  H,  Wada  Y,  Kitamura  N. Repair of partial anomalous pulmonary venous connection with a minimal atriotomy. Jpn J Thorac Cardiovasc Surg 2000; 48: 370–372.
