Phenotypic Variability of ANK2 Mutations in Patients With Inherited Primary Arrhythmia Syndromes

Abstract

Background: Mutations in ANK2 have been reported to cause various arrhythmia phenotypes. The prevalence of ANK2 mutation carriers in inherited primary arrhythmia syndrome (IPAS), however, remains unknown in Japanese. Using a next-generation sequencer, we aimed to identify ANK2 mutations in our cohort of IPAS patients, in whom conventional Sanger sequencing failed to identify pathogenic mutations in major causative genes, and to assess the clinical characteristics of ANK2 mutation carriers.

Methods and Results: We screened 535 probands with IPAS and analyzed 46 genes including whole ANK2 exons using a bench-top NGS (MiSeq, Illumina) or performed whole-exome-sequencing using HiSeq2000 (Illumina). As a result, 12 of 535 probands (2.2%, aged 0–61 years, 5 males) were found to carry 7 different heterozygous ANK2 mutations. ANK2-W1535R was identified in 5 LQTS patients and 1 symptomatic BrS and was predicted as damaging by multiple prediction software. In total, as to phenotype, there were 8 LQTS, 2 BrS, 1 IVF, and 1 SSS/AF. Surprisingly, 4/8 LQTS patients had the acquired type of LQTS (aLQTS) and suffered torsades de pointes. A total of 7 of 12 patients had documented malignant ventricular tachyarrhythmias.

Conclusions: Various ANK2 mutations are associated with a wide range of phenotypes, including aLQTS, especially with ventricular fibrillation, representing “ankyrin-B” syndrome.

ANK2 encodes ankyrin-B which links integral membrane proteins to the spectrin-based cytoskeleton.^1–3 Ankyrin-B plays critical roles in the anchoring and stabilizing multiple ion channels and exchangers in the cardiomyocyte membrane.^4–11 In 1995 a specific form of long QT syndrome (LQTS) with sinus bradycardia was examined using a linkage analysis in a large French family and was found to be associated with locus 4q25–27.¹² This was later proved to be mutations in ANK2 and a cause of LQTS type 4 (LQT4), which is a rare type of LQTS¹³ and other dysrhythmia phenotypes: ventricular tachyarrhythmia and sino-atrial node (SAN) disturbance.¹⁴

Editorial p ????

After these pioneering works, many ANK2 variants were reported in patients with diverse phenotypes ranging from mild sick sinus syndrome (SSS) without ventricular arrhythmias to sudden cardiac death (SCD) from malignant arrhythmias.^12,14–20 Functional assays revealed that these reported ANK2 variants were associated with various degrees of malfunction in the targeting or stabilization of cardiac ion channels or associated proteins, thereby leading to differences in the in vitro cellular phenotypes.^17,18 Clinical and experimental results suggested that ANK2 variants may exhibit a wide clinical spectrum known as “ankyrin-B syndrome”.^14–18

However, only a small number of ANK2 mutation carriers, mainly in Caucasians, have been reported, with limited clinical features, and to our best knowledge no Japanese patients with ANK2 mutations have been reported. One reason is that ANK2 is too big (>45 exons) for screening by the conventional Sanger method. Recent advances in genetic screening using a next-generation sequencer (NGS) have enabled us to screen many target genes in a short time. In this study, using a NGS, we tried to elucidate the prevalence of ANK2 mutations in inherited primary arrhythmia syndrome (IPAS) patients with no major causative genes in our previous cohort studies, and the clinical characteristic of patients with ANK2 mutations.

Methods

Subjects and Genetic Analysis

The cohort consisted of 535 probands (male patients=288) with the following IPAS: 341 LQTS, 58 Brugada syndrome (BrS), 40 idiopathic ventricular fibrillation (IVF), 27 catecholaminergic polymorphic ventricular tachycardia (CPVT), 22 SSS/atrial fibrillation (AF), 16 SCD (molecular autopsy), 11 short-coupled variant of torsade des points (SCTdP), 7 ventricular tachycardia (VT), 7 short QT syndrome, and 6 complete atrioventricular block (CAVB) (Table 1). They were suspected to have or diagnosed with IPAS and were referred to the Shiga University of Medical Science (Otsu)/Kyoto University (Kyoto) (n=325) or the National Cerebral and Cardiovascular Center (Suita) (n=210) for genetic evaluation. All subjects gave written informed consent in accordance with the guidelines approved by each institutional review board (SUMS_23-128-2, NCVC_M24-031-4). Their phenotypes were evaluated based on clinical findings and 12-lead ECGs. We defined heart rate ≤60 beats/min as bradycardia for patients aged ≥19 years. For those aged 18 years or younger, we adopted definitions from previous reports.^21,22

Table 1. Prevalence of ANK2 Mutations in Inherited Primary Arrhythmia Syndrome

Diagnosis	n	No. of ANK2 mutations	Prevalence (%)
Long-QT syndrome	341	8	2.3
Brugada syndrome	58	2	3.4
Idiopathic VF	40	1	2.5
SSS/AF	22	1	4.5
VT	7	0	0.0
SCD	16	0	0.0
CPVT	27	0	0.0
SCTdP	11	0	0.0
Short-QT syndrome	7	0	0.0
CAVB	6	0	0.0
Total	535	12	2.2

AF, atrial fibrillation; CAVB, complete atrioventricular block; CPVT, catecholaminergic polymorphic ventricular tachycardia; SCD, sudden cardiac death; SCTdP, short-couplet variant of torsades des pointes; SSS, sick sinus syndrome; VF, ventricular fibrillation; VT, ventricular tachycardia.

Genomic DNA was isolated from peripheral blood lymphocytes. Genetic screening of all probands was performed by conventional Sanger method, and all were negative for mutations in KCNQ1, KCNH2, and SCN5A. In 325 probands, we analyzed 46 additional genes including ANK2 (Table S1) using a bench-top NGS (MiSeq, Illumina, San Diego, CA, USA). These genes have been reported as causative for IPAS or cardiomyopathies. The remaining 210 probands, all LQTS, were analyzed by whole-exome-sequencing (HiSeq, Illumina) as shown previously.²³ After analyzing the data obtained by the NGS, we confirmed detected mutations by the Sanger method. The nucleotide number of ANK2 is based on NM_020977.3, and the amino acid number is based on NP_066187.2. We defined a variants as a mutation of which the minor allele frequency (MAF) was <0.005 in all public databases: the Exome Aggregation Consortium (ExAC: http://exac.broadinstitute.org), NHLBI Exome Sequencing Project Exome Variant Serve (http://evs.gs.washington.edu/EVS/), 1000 Genomes Project (http://browser.1000 genomes.org/index.html), Human Genetic Variation Database (HGVD: http://www.genome.med.kyoto-u.ac.jp/SnpDB/), and the genome cohort study of Tohoku Medical Megabank Organization (ToMMo: https://ijgvd.megabank.tohoku.ac.jp). The severity of each variant was estimated by PolyPhen2, Provean, SIFT and CADD. CADD score >15 was judged as damaging.

Results

Genetic Screening With NGS

We identified 7 different heterozygous ANK2 mutations in 12 probands (2.2%, age 0–61 years, 5 males) (Table 1): p.Y148H (c.442T>C), p.G761S (c.2281G>A), p.T825I (c.2474C>T), p.R895Q (c.2684G>A), p.L1128V (c.3382C>G), p.W1535R (c.4603T>A), and p.I1855R (c.5564T>G) (Figure 1). p.W1535R was the most frequent and was identified in 6 probands, while the other mutations were identified in a single proband (Table 2). These mutations were scattered in various regions of ANK2 (Figure 1) and most were predicted as damaging by multiple prediction software (Table 2).

Figure 1.

Map of ankyrin-B domain with ANK2 mutations identified in patients with inherited primary arrhythmia syndromes. The novel mutations identified in this study are denoted in red, and those from previous studies in blue. CTD, C-terminal domain; DD, death domain; IP3R, IP3 receptor; MBD, membrane-binding domain; NCX, Na/Ca exchanger; NKA, Na⁺/K⁺ ATPase; SBD, spectrin-binding domain.

Table 2. Genetic Characteristics of ANK2 Mutations in Inherited Primary Arrhythmia Syndrome

Patient no.	Mutation			dbSNP	Minor allele frequency					Prediction software
	Nucleotide	Amino acid	ANK2 domain		ExAC Browser	ESP6500	1000 genomes	HGVD	ToMMo	Polyphen2	Provean	SIFT	CADD
1	442T>C	Y148H	MBD	–	–	–	–	–	–	Possibly damaging [0.735]	Deleterious [−4.131]	Damaging [0.04]	26.6
2	2281G>A	G761S	MBD	rs774769455	–	–	–	0.003	–	Probably damaging [1]	Deleterious [−5.413]	Tolerated [0.08]	19.99
3	2474C>T	T825I	MBD	–	–	–	–	0.001	–	Possibly damaging [0.779]	Deleterious [−3.583]	Tolerated [0.064]	26.3
4	2684G>A	R895Q	SBD	rs751513548	0.0000248	–	–	0.001	–	Benign [0.184]	Deleterious [−3.012]	Tolerated [0.22]	18.09
5	3382C>G	L1128V	SBD	–	–	–	–	–	–	Possibly damaging [0.987]	Deleterious [−2.894]	Damaging [0.03]	11.56
6–11	4603T>A	W1535R	DD	rs199473346	0.00003303	–	–	–	0.0022	Probably damaging [1]	Deleterious [−3.115]	Damaging [0.016]	31
12	5564T>G	I1855R	CTD	rs201966460	0.00000842	–	0.0002	0.003	–	Possibly damaging [0.547]	Neutral [−0.691]	Tolerated [0.37]	16.3

CADD, Combined Annotation-Dependent Depletion; ExAC, Exome Aggregation Consortium; ESP6500, NHLBI Exome Sequencing Project; HGVD, HUMAN Genetic Variation Database; SIFT, Sorting Intolerant From Tolerant; ToMMo, Tohoku Medical Megabank Organization. CTD, C-terminal domain; DD, death domain; MBD, membrane-binding domain; SBD, spectrin-binding domain.

Genetic screening by NGS detected multiple variants in various genes in the 12 probands. In an effort to identify disease-causing mutations, we excluded genes not expressed in the heart, variants of which had MAF >0.005 in the public databases, or the severity of each variant estimated by the prediction software was minimal. Table S2 shows these remaining variants.

Patient 1: ANK2-Y148H

ANK2-Y148H was identified in a female newborn. She was found to have marked bradycardia with high-grade AVB and QT prolongation (QTc: 532 ms, HR: 73 beats/min) at 2 days old, but no syncope. Based on her ECG at 4 months, she no longer had AVB but still had bradycardia for her age (HR: 107 beats/min);^21,22 the QTc interval had normalized to 433 ms.

Patient 2: ANK2-G761S

ANK2-G761S was identified in a 61-year-old man who had experienced a transient loss of consciousness after dinner. His resting 12-lead ECG (Figure 2A) showed marked bradycardia (HR: 43 beats/min, QTc: 442 ms). QT prolongation was not detected during exercise stress test, but epinephrine challenge test prolonged his QT interval (from 441 ms to 478 ms).²⁴ Holter ECG recording revealed 1 episode of nonsustained VT. His syncope was suspected to be caused by LQTS. His brother had died suddenly at age 59, but other family members remained asymptomatic (Figure 3A). The patient carried the S28L variant in KCNE1, which is known as a causative gene for LQTS type 5 (Table S2), and we could not rule out the possibility that the variant affected his phenotype.

Figure 2.

12-lead ECGs of the probands with inherited primary arrhythmia syndromes. (A) 12-lead ECG of patient 2 showing marked bradycardia: HR: 43 beats/min, QTc: 442 ms. (B-1) 12-lead ECG of patient 6 at admission shows marked QT prolongation: QTc: 597 ms. (B-2) 12-lead ECG of patient 6 on the following day. QTc shortened to 445 ms. (C) 12-lead ECG of patient 7 showing coved-type ST elevation in the 3rd intercostal position.

Figure 3.

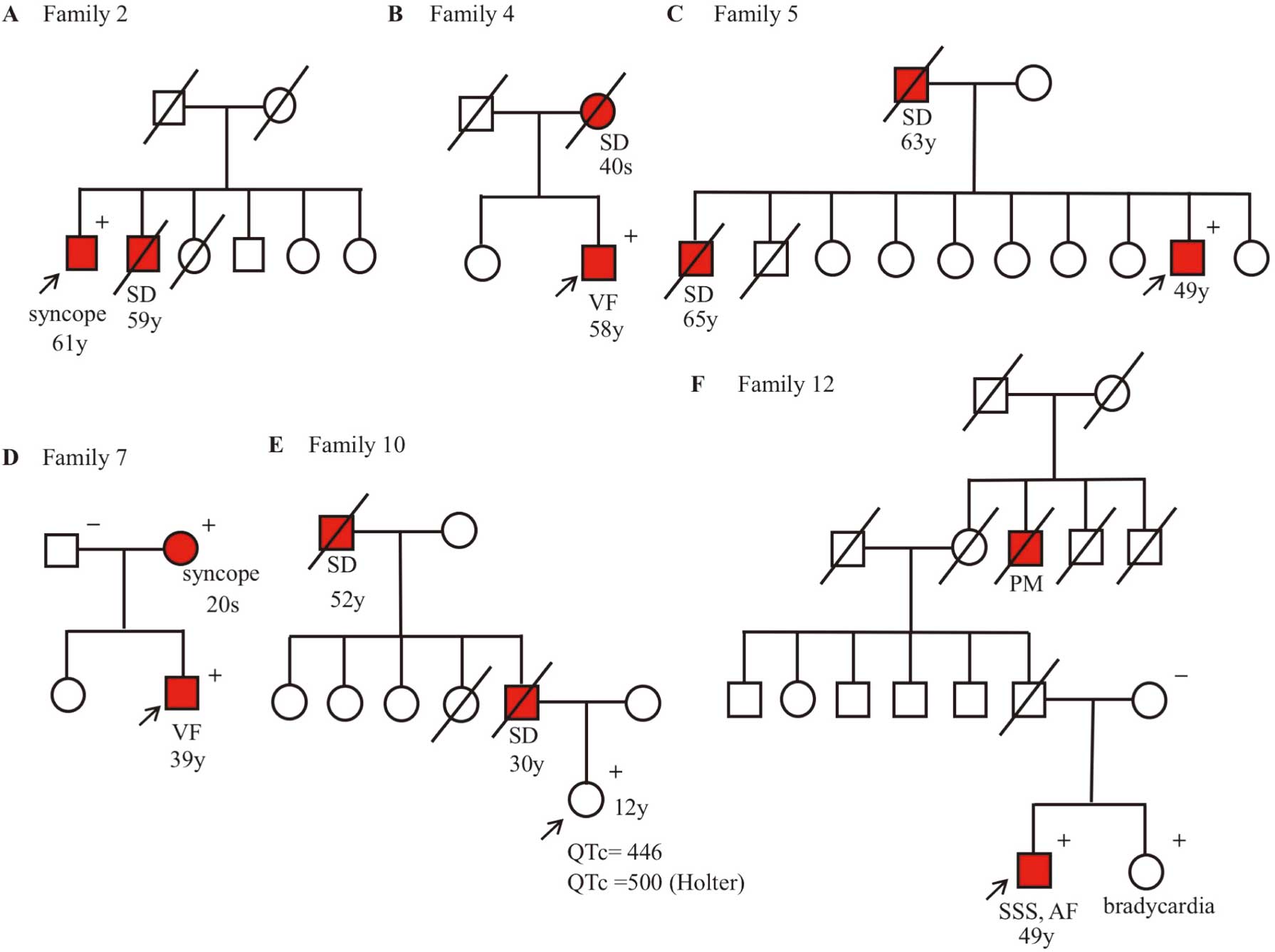

Family pedigree of patients with ankyrin-B syndrome. Red symbols show the affected individuals, slashed symbols show deceased individuals. The arrow indicates the proband. (A) Family pedigree of patient 2. Brother died suddenly at age of 59. (B) Family pedigree of patient 4. Mother died suddenly in her 40 s. (C) Family pedigree of patient 5. Father and brother died suddenly at ages 63 and 65, respectively. (D) Family pedigree of patient 7. Mother experienced syncope around 20 years old and she had same mutation. (E) Family pedigree of patient 10. Father died suddenly at 30 years old and grandfather died suddenly at 52 years old. (F) Family pedigree of patient 12. Sister carrying the same mutation had bradycardia, and grand-uncle on his father’s side had been implanted with a pacemaker.

Patient 3: ANK2-T825I

ANK2-T825I was identified in a 30-year-old woman who had experienced repeated episodes of loss of consciousness since she was 12 years old, and the events were mostly exercise-related. Her resting 12-lead ECG showed a normal QTc interval (416 ms), and QT prolongation was not detected during exercise stress test; however, epinephrine challenge test prolonged her QT interval (from 436 ms to 508 ms).²⁴ She had no structural cardiac abnormalities on ultrasound cardiography (UCG) and no notable family history.

Patient 4: ANK2-R895Q

ANK2-R895Q was identified in a 59-year-old man who had experienced syncope because of VF at work and he had been successfully defibrillated by an ambulance crew. There were no abnormal findings on his resting 12-lead ECG, UCG, and other examinations. In the exercise stress test, neither QT prolongation nor polymorphic VT was observed. He was diagnosed as having IVF, and an implantable cardioverter defibrillator (ICD) was implanted. His mother had died suddenly in her 40 s (family tree in Figure 3B).

Patient 5: ANK2-L1128V

ANK2-L1128V was identified in a 49-year-old man who, although asymptomatic, showed a saddleback-type ST elevation in V1–2 on ECG recorded at a health checkup. Pilsicainide challenge test unmasked a coved-type ST elevation in V1 at the 3rd intercostal position (BrS type 1), and he was suspected of having BrS. His father and brother had died suddenly at ages 63 and 65, respectively (family tree in Figure 3C); however, no ECGs of his family members were available.

Patients 6–11: ANK2-W1535R

ANK2-W1535R in the death domain (Figure 1) was identified in 6 patients (1 male); 4 had LQTS with documented TdP or VF (patients 6, 8, 9 and 11 in Tables 2 and 3), 1 was asymptomatic but suspected to have LQTS from the family history (patient 10), and the last patient had symptomatic BrS (patient 7).

Table 3. Clinical Characteristics of Patients With Inherited Primary Arrhythmia Syndrome With ANK2 Mutations

Patient no.	Age	Sex	Dx	ANK2 mutation	Symptoms	TdP/VF	ECG			Family history	QTc (ms) at events, Diagnosis of Acquired LQTS	Other ECG or genetic abnormalities
							HR (beats/min)	Brady	QTc (ms)
1	0	F	LQTS	Y148H	–	–	107	P	433	–	QTc 532 ms, HR 73 beats/min	2:1 AVB, PAT
2	61	M	LQTS	G761S	Syncope	–	43	P	442	P	QTc 478 ms, epinephrine load test	KCNE1-S28L (rs199473350)
3	30	F	LQTS	T825I	Syncope	–	80	–	436	–	QTc 508 ms, epinephrine load test
4	59	M	IVF	R895Q	Syncope	VF	58	P	384	P
5	49	M	BrS	L1128V	–	–	60	P	426	P		CRBBB, saddleback-type ST elevation
6	36	F	LQTS	W1535R	Syncope	TdP	60	P	445	–	QTc 597 ms with nausea and vomiting
7	39	M	BrS	W1535R	Syncope	–	55	P	353	P		Coved ST elevation, EPS-induced VF
8	45	F	LQTS	W1535R	Syncope	TdP	67	–	450	P	QTc 550 ms, hypokalemia and drug-induced TdP
9	44	F	LQTS	W1535R	Syncope	VF	94	–		–	QTc 622 ms after hemodialysis
10	12	F	LQTS	W1535R	–	–	50	P	446	P
11	40	F	LQTS	W1535R	Syncope	TdP	70	–	448	–	QTc 537 ms, drug-induced TdP
12	49	M	SSS, AF	I1855R	–	–	49	P	507	P		EPS-induced VF

P, positive; –, negative. AVB, atrioventricular block; BrS, Brugada syndrome; CRBBB, complete right bundle branch block; EPS, electrophysiological study; IVF, idiopathic VF; LP, late potential; LQTS, long QT syndrome; MRI, magnetic resonance imaging; PAT, paroxysmal atrial tachycardia; PM, pace maker; tdP, torsades des pointes; UCG, ultrasound cardiography; VPC, ventricular premature contraction. Other abbreviations as in Table 1.

Patient 6, a 36-year-old woman, was admitted to an emergency hospital with nausea and vomiting. In the emergency room, she repeatedly lost consciousness because of TdPs. Although her 12-lead ECG displayed a marked QT prolongation (QTc: 597 ms) on admission (Figure 2B-1), her QTc had shortened to 445 ms on the following day (Figure 2B-2). She had experienced no syncope except for this episode and had no notable family history.

Patient 7 was a 39-year-old man who experienced loss of consciousness with seizures after dinner. He had a similar history at age 30 when he had a fever. His 12-lead ECG (Figure 2C) showed a coved-type ST elevation in V1–2 at the 3rd intercostal position and he was diagnosed as having BrS. In the electrophysiological study (EPS), VF was induced by a single extrastimuli (600/240 ms) from the right ventricular outflow tract, and an ICD was then implanted. His mother also had a history of syncope at around 20 years old, and the same mutation was identified (Figure 3D). Her 12-lead ECG showed no Brugada-type ST changes or QT prolongation, though we could not perform a provocation test with sodium-channel blocker or an exercise stress test.

Patient 8, a 45-year-old woman, had experienced repeated episodes of loss of consciousness since taking tolazoline hydrochloride for insomnia. She was hospitalized for pharyngitis with a high fever and had started on ceftriaxone treatment. A few days after admission, she suffered syncope at rest, and TdP was detected on her monitoring ECG. Her QTc was 550 ms with notched T waves, and her serum potassium level was low (3.3 mEq/L) when TdP was recorded. After withdrawal of the culprit drugs, her QT interval remained prolonged (QTc: 450 ms, HR: 67 beats/min). Her mother had also experienced syncope, although the details were uncertain. We could not obtain her consent for genetic analysis.

Patient 9, a 44-year-old woman under artificial hemodialysis for chronic kidney disease, lost consciousness while eating after hemodialysis, and TdP was documented. Her 12-lead ECG after syncope showed marked QT prolongation (QTc: 622 ms, HR: 94 beats/min) and notched T wave. She had never experienced syncope other than this episode. We could not obtain her electrolyte data when she lost consciousness.

Patient 10 was an asymptomatic 12-year-old girl who had a family history of SCD. Her 12-lead ECG showed a borderline QTc interval (QTc: 446 ms) and no sign of Brugada-type ST-T change, but marked bradycardia for her age (HR: 50 beats/min). Her father had died suddenly at 30 while at work, and her grandfather had died suddenly at age 52 while on the way home from work (Figure 3E). Neither had diagnosed cardiac diseases but further clinical information was not available. Her family was suspected to have IPAS, and she was referred for genetic analysis.

Patient 11, a 40-year-old woman, experienced a transient loss of consciousness with seizures at night. In the emergency room, she lost consciousness again, and TdP was documented. Her 12-lead ECG showed marked QT prolongation (QTc: 537 ms). She was suspected of having drug-induced LQTS because she took various medicines, including etizolam, famotidine, NSAIDs, and others. She had never shown QT prolongation at past health checkups. After withdrawal of all the drugs, however, her QTc remained prolonged (448 ms). In addition, she suffered multiple PVCs. Bisoprolol was started, but the PVCs were not suppressed, and marked bradycardia appeared (HR: 38 beats/min). Therefore, β-blocker treatment was stopped, and an ICD was implanted.

Patient 12: ANK2-I1855R

ANK2-I1855R was identified in a 49-year-old man who had been diagnosed with SSS at age 44. Although he was asymptomatic, his bradycardia had progressed gradually. Atrial standstill was detected during EPS, but H-V conduction was normal. In addition, VF was induced by triple extrastimuli from the right ventricle (600/300/280/240 ms). Therefore, an ICD was implanted. His sister carrying the same mutation had bradycardia, but his mother, who was not a carrier, showed a normal heart rate of ECG. His grand-uncle on his father’s side had been implanted with a pacemaker (Figure 3F). Both his grand-uncle and father were already deceased, so their genetic data were not available.

Summary of ANK2 Mutation Carriers (Table 3)

ANK2 mutations were identified in probands manifesting LQTS (n=8), BrS (n=2), IVF (n=1), and SSS/AF (n=1); 8 of 12 genotyped probands (67%) were symptomatic with syncope, and malignant ventricular tachyarrhythmias were documented in 5 of the 8 symptomatic probands (63%). Bradycardia was present in 8 of the 12 probands (67%; patients 1, 2, 4–7, 10, 12), and patient 1 had CAVB. None of the probands had any structural cardiac abnormalities. All 5 male probands had bradycardia. A patient with BrS and 1 with SSS/AF underwent an EPS, and VF was induced in both cases. In 7 of the 8 LQTS patients carrying ANK2 mutations, the baseline QT interval was nearly within the normal range, but was markedly prolonged by epinephrine load test or other QT prolongation factors. In particular, 4 of the LQTS patients showed prominent QT prolongation around episodes of TdP; in other words, they were diagnosed as having an acquired type of LQTS (aLQTS).

In 7 families (58%), other members showed clinical phenotypes: SCD, syncope or bradycardia (Table 3). Among the phenotype-positive family members, 5/6 males and 1/4 females had died suddenly. Except for patient 1 and 10, most of the patients were diagnosed in adulthood.

Discussion

This comprehensive analysis using NGS firstly demonstrated that the prevalence of ANK2 mutations was 2.2% (12 probands, 7 mutations) in the study cohort of 535 Japanese IPAS probands with no major IPAS-related genes identified. Their expressivity varied considerably: LQTS, BrS, IVF and SSS/AF as previously reported.^12,14–20 Furthermore, an ANK2-W1535R variant was identified in 4 patients with aLQTS.

Ankyrin is a multifunctional protein involved in the targeting and stabilization of ion channels and transporters in various tissues.^1,2 The ankyrin genes, ANK1 (chromosome 8p11), ANK2 (4q25–27), and ANK3 (10q21) encode 3 different ankyrins: canonical ankyrin-R (210 kD), ankyrin-B (220 kD), and ankyrin-G (190 kD), respectively.^1–3 The ankyrins have 4 domains: (1) membrane-binding domain (MBD), (2) spectrin-binding domain (SBD), (3) death domain (DD) and (4) C-terminal domain (CTD) (Figure 1). The MBD of 24 ankyrin repeats interacts with various membrane proteins, and the DD and CTD comprise the regulatory domain.^25–27 The known ANK2 variants in abnormal cardiac function are reportedly localized around the CTD and DD regulatory domains.^14–18 Figure 1 summarizes the location of ANK2 mutations identified in the present patients, showing a wide distribution over the gene.

Caucasian patients with ANK2 variants present with various dysrhythmia phenotypes, including ventricular tachyarrhythmia and SAN disturbance, a syndrome now known as ankyrin-B syndrome.^14–18 Le Scouarnec et al demonstrated that a trafficking dysfunction of ankyrin-B caused abnormal SAN electrical activity and sinus node dysfunction, thereby causing bradycardia and heart rate variability.¹⁶ Mohler et al reported that ANK2 variants around the regulatory domain (DD and CTD) contributed to the various degrees of ankyrin-B loss-of-function, and proposed that it may reflect the clinically wide spectrum.¹⁸

Ankyrin-B as a membrane “adaptor” binds to various integral membrane proteins,^4–11 probably including the sodium channel. Probands carrying ANK2 mutations presented with phenotypes of BrS in our study as well as in previous reports.^18,28 SCN5A, encoding an α-subunit of the cardiac sodium channel, is the most frequent causative gene responsible for BrS, and its loss-of-function type mutations cause BrS. Ankyrin-B knockout mice have been shown to reduce peak Na while increasing late Na currents,²⁹ indicating that loss-of-function type ANK2 mutations may present as BrS and long QT phenotypes.

Ankyrin-B also binds to the Na/Ca exchanger (NCX), and several ANK2 mutations are reported to reduce the NCX expression.¹⁸ Bögeholz and colleagues demonstrated that heterozygous NCX-knockout mice had significantly shortened action potential duration (APD).³⁰ ANK2 mutations may therefore affect the APD through NCX reduction and cause heterogeneity of repolarization, which is potentially arrhythmogenic.³¹

To the best of our knowledge, this is the first report on ANK2 mutations in a large Japanese population. The phenotypes of the mutation carriers were diverse, and 8 of 12 genotyped probands (67%) showed bradycardia. In addition, across the various diagnoses, 7 of 12 probands presented with documented malignant ventricular tachyarrhythmia, and 2 of the remaining 5 patients had a family history of SCD. As shown in the family trees (Figure 3), the genotype appeared to be associated with the phenotype. These findings suggest that ANK2 mutations may be associated with malignant ventricular arrhythmias. Although 7 of 12 probands carried several variants in genes expressed in the heart (Table S2), most of the variants were of genes reported as the cause of structural cardiac diseases, and our probands showed no cardiac structural abnormalities that were explained by these variants. Furthermore, the genes reported had no association with IPAS except for KCNE1 and ANK2.

Surprisingly, 7 of 8 probands showing LQTS phenotype (87.5%) had the concealed type of LQTS. Additional factors such as epinephrine, hypokalemia, sympathetic nerve stimulator, and bradycardia, aggravated their QT prolongation³² and after removal of these modifiers, the QTc interval nearly normalized (443±37 ms, Table 3). The mean age at first diagnosis (39±17 years) was older than for typical congenital LQTS, which is also consistent with aLQTS.

In particular, W1535R was identified in 6 of 12 probands (50%), and 4 of those 6 (67%) had aLQTS. TdP/VF was documented in these 4 aLQTS probands. Though functional assay of ANK2-W1535R was not available, according to prediction software this variant is thought to be damaging, and may be associated with the occurrence of aLQTS. More recently, we demonstrated in 188 clinically diagnosed aLQTS patients that the prevalence of “concealed” congenital LQTS was higher than expected.³³ We screened for the 5 major LQTS genes: KCNQ1, KCNH2, SCN5A, KCNE1, and KCNE2, and identified mutations in these LQTS-related genes in 53 patients (28%). ANK2 may therefore be a candidate gene for aLQTS.

Study Limitations

We were not able to perform functional analysis of the ANK2 mutations identified in the probands because ankyrin-B can combine with or affect multiple ion channels and exchangers. We were also unable to further analyze family members to show co-segregation. Therefore, this study may have a limitation to elucidating the pathogenicity of the diseases and diverse phenotypes caused by ANK2 mutations. In addition, NGS could detect multiple variants of different genes, which were not completely excluded as responsible for the phenotypes.

Conclusions

We identified multiple ANK2 mutations in IPAS patients with diverse phenotypes using NGS. Ankirin-B syndrome has primary importance in the differential diagnosis of IPAS, especially in those with malignant ventricular tachyarrhythmias and/or the aLQTS phenotype.

Acknowledgments

We thank all the patients and their family members for their willingness to participate in this study. We are also grateful to Dr Hiroko Goto, Dr Tetsuya Haruna, Dr Atsushi Kyodo, Dr Takayuki Maki, Dr Mikiko Mikuri, Dr Akira Nakazawa, Dr Tomohiko Sakatani, Dr Satoshi Shizuta, Dr Yukako Yoshikane, and Dr Tomohide Yoshino for referral and care of the study patients.

Grants

This work was supported by research grants from the Ministry of Education, Culture, Science, and Technology of Japan (T.A., S.O., Y.M., T. Tanaka, W.S., M.H.), Health Science Research grants from the Ministry of Health, Labour and Welfare of Japan for Clinical Research on Measures for Intractable Diseases (T.A., Y.M., T. Tanaka, W.S., M.H.) and Translational Research Funds from the Japanese Circulation Society (T.A., W.S., M.H.).

Disclosures

None.
