2023 Volume 64 Issue 2 Pages 479-484

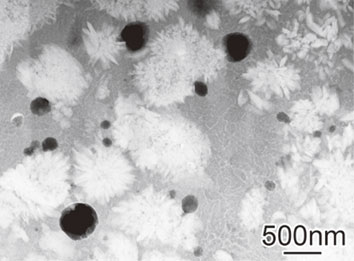

A5052 aluminum alloy and SPCC steel plates were welded using magnetic pulse welding, and interfacial microstructure and strength of the lap joint were examined. The A5052 aluminum alloy and the SPCC steel plates were used for a flyer plate and a parent plate, respectively. Charging energy stored in capacitor and gap between the A5052 aluminum alloy and the SPCC steel plates were changed. Microstructure was examined by using an optical microscope, a scanning electron microscope and a scanning transmission electron microscope. Tensile-shear test was used for evaluating the strength of the joint. The magnetic pulse welding of A5052 aluminum alloy and SPCC steel was achieved at the charging energy above 6.0 kJ and at the gap between the plates above 1.0 mm. The range of charging energy in which the strong welding is accomplished was different at each gap and the range increased with decreasing the gap. The lap joint was not fractured at the welding interface by the tensile-shear test whereas the fracture occurred at a part of the aluminum base metal. The welding interface exhibited characteristic wavy morphology. An intermediate layer was produced along the wavy interface. Scanning transmission electron microscope observation revealed that the intermediate layer is composed of fine Al–Mg grains and dispersed dendritic Al–Fe intermetallic compound particles.
