Distribution and Chemoenzymatic Removal of Heavy Metals in Sea Cucumber Acaudina leucoprocta

Abstract

Sea cucumbers are traditional marine food in Asian countries. In this work, the chemical elements accumulated in sea cucumber Acaudina leucoprocta from the East China Sea were measured and analyzed. The contents of Zn, Mn, Cu, As, Pb, Cd and Cr increased with the increase of weight of A. leucoprocta. The levels of Pb and As in all the examined individuals were higher than the maximum residue limits (MRLs) permitted in foodstuffs. The metals were found to be selectively distributed in the body compartments of A. leucoprocta. The highest contents of heavy metals As, Pb were found in intestines and body wall, while the lowest in anus and internal organ. An efficient chemoenzymic method by combining proteolytic enzymatic hydrolysis with citric acid soaking was established to remove the heavy metals in sea cucumber A. leucoprocta. The concentrations of both As and Pb were decreased to below 0.5 mg kg⁻¹ in all the samples.

Introduction

Sea cucumbers, traditional marine food in Asian countries, are widely exploited due to their relatively high nutritional and medicinal values (Hu et al., 2010). Epidemiological studies indicated that sea cucumbers are useful in treatment of stomach ulcers, wound healing, and coronary heart disease (Rahman, 2015). Currently, approximately 1400 species have been identified worldwide. There are more than 20 kinds of edible sea cucumbers in China. In the past decade, the consumption of sea cucumber was increased rapidly (Eriksson and Clarke, 2015; James, 2001) .

Sea cucumbers are species of echinoderm with mucous skin, which can potentially accumulate heavy metals by absorption from the polluted sediments in the sea (Luo et al., 2010; Wang et al., 2015; Zhang et al., 2016). The consumption of the sea cucumbers containing high level of heavy metals may potentially cause serious negative impacts on health, since they are persistent, bioaccumulative and toxic (King et al., 2010; Nghia et al., 2009; Noël et al., 2011). Therefore, it is important to ensure that the heavy metals in sea cucumbers which are sold for consumption remain below the maximum residue limits (MRLs) for Food Safety Standards. However, due to the lack of effective methods for removing heavy metals, large amount of sea cucumbers are discarded or processed with very poor quality each year (Eriksson and Clarke, 2015; Gu et al., 2011). Acaudina leucoprocta, which has been proven to be a high-quality protein resource, is abundantly distributed in the East China Sea and remains an under-utilized species for consumption due to contamination by heavy metals. The removal of heavy metals is the key bottleneck for the usage of sea cucumber A. leucoprocta for consumption.

To date, although several studies have reported the distribution of metal elements in sea cucumber Holothuria tubulosa, Australostichopus mollis and Apostichopus japonica (Culha et al., 2016; Li et al., 2016; Slater and Jeffs, 2010; Warnau et al., 2006), there have been few studies concerning heavy metals removal in A. leucoprocta. As an important protein source, it is necessary to assess the heavy metals levels accumulated in A. leucoprocta. In this work, the distribution of chemical elements in A. leucoprocta was investigated and a chemoenzymatic method for removing the heavy metals in A. leucoprocta was developed.

Materials and Methods

Materials    Sea cucumbers (A. leucoprocta) were collected from Xiangshan (Zhejiang, China) (Fig. 1). All the samples were frozen at −20°C. Papain (EC 3.4. 22.2) (800 U mg⁻¹) was purchased from Shanghai Yuanye Bio-Technology Co., Ltd. (Shanghai, China). Pepsin (EC 3.2.3.1) (lyophilized powder, 683 U mg⁻¹) from porcine gastric mucosa was purchased from Sigma-Aldrich (Shanghai, China). HNO₃ and HClO₄ were of HPLC grade and purchased from local supplies. The standard solutions of metals (1,000 mg L⁻¹) used for calibration were obtained from the National Standards Centre. All other reagents used were of analytical grade and obtained commercially.

Fig. 1.

Samples of sea cucumber A. leucoprocta were collected from Xiangshan. The site is situated at the coastal part of East China Sea, Zhejiang province. (Source: Google maps at www.Google.com).

Sample preparation    The frozen sea cucumbers A. leucoprocta were thawed at room temperature and then washed repeatedly with deionized water to remove sediment and other impurities. For determination the chemical elements in each body compartments, the body wall, anus, internal organ and intestines of sea cucumber were separated and then homogenized using a laboratory mill (IKA Ultra-Turrax T25, German), respectively (Fig. 2).

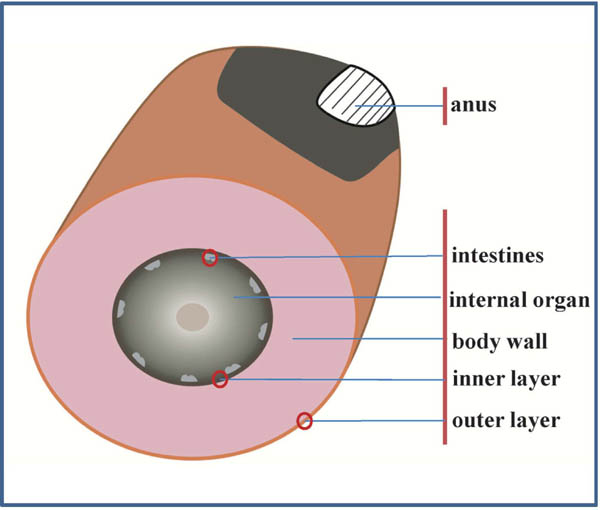

Fig. 2.

Body compartments of sea cucumber A. leucoprocta. The intestines were adjoined to the inner layer of body wall. The internal organ mainly includes the respiratory trees.

Determination of heavy metals    Homogenized samples (0.5 g wet weight) were digested with a Multiwave 3000 oven microwave closed system (Anton Paar GmbH, Austria). The digestion program was performed by employing 4 mL of HNO₃ (14.5 M) and 2 mL of H₂O₂ (11.3 M). The microwave digestions were carried out successively at 120, 150 and 190°C for 5, 5 and 20 min, respectively. After digestion, sample solution were concentrated to 2 mL at 120°C, and diluted to a volume of 25 mL for the determination of heavy metals by Varian 820 ICP-MS (Varian, USA). Internal standard solution containing 1 mg/L of Yttrium (Y), Indium (In) and Scandium (Sc) were added to monitor possible matrix effects and instrument drift. The concentrations of each element were calculated from linear calibration plots obtained by measurement of the mass spectrum of standard solutions. The corresponding isotopes used in ICP-MS were ⁶⁵Cu, ⁶⁶Zn, ⁵⁵Mn, ²⁰² Hg, ⁷⁵As, ²⁰⁶Pb, ¹¹⁴Cd and ⁵²Cr, respectively. All analyses were carried out in triplicates. Results were calculated as average ± standard deviation.

Removal of heavy metals    In order to inactivate the autolysis enzymes existing in the sea cucumber, the body wall of sea cucumber was autoclaved at 121°C for 15 min, followed by cooling and flushing with deionized water. The prepared samples were treated by the chemoenzymatic method to remove the heavy metals. The pretreated sample was firstly hydrolyzed in phosphate buffer (0.1 M, pH 7.0) by addition of 0.15% papain and pepsin (1:1, w/w) at 37°C for 45 min, then washed with deionized water and soaked in citric acid solution (0.1 M) with 1:10 (w/v) by shaking for 54 h, the citric acid solution was changed every 24 h. Samples after different treatment were homogenized for determination of As and Pb content.

Scanning electron microscope (SEM) of the sea cucumber body wall    The body wall of A. leucoprocta was treated in phosphate buffer (0.1 M, pH 7.2) by adding 2.5% glutaraldehyde for 24 h, then dehydrated by gradient elute of 50–100% ethanol. The outer layer of the body wall was characterized by a field scanning electron microscope (SEM) on a JEOL JSM-5300. Image processing and analysis of fiber diameter and degree of alignment were performed with Image J (http://rsb.info.nih.gov/ij/). The samples for SEM was collected by drying to constant weight, mounted on metal stubs, and then sputter-coated with gold-palladium for one minute.

Statistical analysis    All experiments were carried out in triplicates. Data were calculated as average ± standard error and a probability value of <0.05 was considered significant difference. Analysis was performed using R-3.4.2 (www.r-project.org) and Origin 8.0 (OriginLab, USA).

Results and Discussion

Distribution of heavy metals in A. leucoprocta    A. leucoprocta is widely distributed in China Bohai Sea, Yellow Sea and East China Sea. In order to utilize this abundant aquatic product for consumption, it is necessary to firstly investigate the distribution of heavy metals in A. leucoprocta. A great amount of natural and human produced heavy metals such as As, Cu, Pb, Zn, Hg, Cd, Cr were the main pollution source to the sea environment (Chen et al. 2016). Considering that the concentrations of the eight heavy metals (Zn, Mn, Cu, Hg, As, Pb, Cd and Cr) in the mud are relatively higher in the East China Sea. So, we investigated the eight heavy metals distributed in the A. leucoprocta, which inhabit in the sea mud. The heavy metals concentrations accumulated in the body wall of 55 sea cucumbers A. leucoprocta with different weight were measured and the results were shown in Fig. 3. The accumulated concentrations of heavy metals in the A. leucoprocta were found in the following order: Mn>Zn>As>Pb>Cu>Cr>Cd>Hg. The highest concentration of Mn in all samples reached 102.47 ± 0.26 mg kg⁻¹. The concentration of Zn was in the range of 3.88 ± 0.08 to 17.68 ± 0.12 mg kg⁻¹. The results indicated that A. leucoprocta has a tendency to accumulate essential micronutrient metals such as Mn and Zn. The lowest concentration was observed for Cd as well as Hg, which were lower than the MRLs (0.5 mg kg⁻¹). This result confirms that bioaccumulation of Hg in sea cucumber is low (McAloon and Mason, 2003). Compared to Mn and Zn, the concentrations of Cu were one order of magnitude lower. The concentrations of the toxic metal As were in a range of 0.98 ± 0.04 to 11.19 ± 0.08 mg kg⁻¹, suggesting that the As tended to accumulate in the A. leucoprocta. In addition, it was also observed that the concentration of As was higher than that of the essential metal Cu. This finding is in agreement with the results for A. japonicus from the Bohai and Yellow Seas in northern China (Jiang et al., 2015).

Fig. 3.

Concentrations of heavy metals accumulated in the body wall of of A. leucoprocta with different weight.

Compared with the heavy metal contents in sea cucumber H. tubulosa, the concentrations of Zn, Cu and Pb contained in A. leucoprocta were relatively higher, while Cd was lower (Warnau et al., 2006). The concentrations of Zn, As, Pb, Cd and Hg were similar to sea cucumbers products from Guangzhou (Wen and Hu, 2010). Compared with the elements levels in A. japonicus juveniles from coastal areas of Bohai and Yellow seas, the concentrations of Cu, Cr, Zn, As and Pb were all higher except for Cd and Hg. Based on the national limits of food legislation for heavy metals in China, the MRLs for Cu, Zn, Cr, Pb, Cd, As and Hg are 50, 30, 2.0, 0.5, 0.5, 0.5 and 0.5 mg kg⁻¹, respectively. In this work, the contents of Cu, Zn, Cr, Cd and Hg in different individuals of A. leucoprocta body wall were all lower than the MRLs, while the concentrations of As and Pb exceeded the MRLs.

The bioaccumulation of heavy metals is varied in different species, even in the individuals of the same species due to various factors, including physical differences, habitat, age, and season (Morgano et al., 2011; 2014). As shown in Fig. 3, the concentration of As in the A. leucoprocta with an approximate weight of 90 g was 7.85 ± 0.11 mg kg⁻¹, which is 336% higher than that with a weight of 30 g. Similar results were observed for Zn, Mn, Cu, Pb, Cd and Cr. It can be concluded that the concentrations of these elements in A. leucoprocta increased with the increase of weight. However, the concentrations of Hg remained relatively stable for different weight classes. These results indicated that Zn, Mn, As, Cu, Pb, Cd and Cr tended to bioaccumulate as the A. leucoprocta continues to growth. Warnau et al. (2006) reported that the body compartment was the predominating factor of variation for many heavy metals within an individual organism. Therefore, in order to further investigate the distribution of heavy metals in sea cucumber, four body compartments (body wall, anus, internal organ and intestines) (Fig. 2) of A. leucoprocta were separated and homogenized to determine the heavy metal concentrations. As shown in Table 1, the contents of Cu, Zn, Cr, Cd and Hg in the body wall, anus and internal organ of A. leucoprocta were all lower than the MRLs except As and Pb. The intestines and body wall of A. leucoprocta accumulated higher concentration of As and Pb. It was demonstrated that the body wall and intestines were the major compartments polluted by the two heavy metals. These results are similar to those in sea cucumber Holothuria tubulosa from the Mediterranean Posidonia oceanica ecosystem (Warnau et al., 2006), yet different from those concerning Cu measurements in H. leucospilota and Pb in A. japonicus from the Bohai Sea (Warnau et al., 2006; Xing and Chia, 1997). Benthos has a potential to accumulate chemical elements from surrounding water or sediments in excessive amounts (Ca et al., 2006; Shulkin et al., 2003). The sea cucumber A. leucoprocta inhabited at the bottom of seafloor, and lived on the nutrition from the mud. The concentration of Pb in the surface sediments of East China Sea was very high (34.13 mg kg⁻¹) (Chen et al., 2016). Our investigation indicated that the heavy metals of As and Pb in sea mud in East China Sea where the sea cucumbers A. leucoprocta inhabit were 19.32 ± 1.12 and 29.49 ± 0.94 mg kg⁻¹ respectively. As Shown in Fig. 2, the inner layer and outer layer of the body walls as well as the intestines contact directly to the mud, which may results in the accumulation of high levels of heavy metals. These results showed that the higher concentrations of As and Pb in body wall and intestines of A. leucoprocta were probably due to the following facts. First, the sea cucumber A. leucoprocta lives in the buried mud at the bottom of seafloor. Second, the body wall secretes very sticky mucus, which can easily adsorb heavy metals in the mud. Third, the A. leucoprocta swallows polluted sea water and mud to feed itself. Based on the above reasons, heavy metals (As and Pb) severely accumulate in the intestines and body walls of A. leucoprocta.

Table 1. Concentrations of elements in different compartments of the sea cucumber A. leucoprocta from East China Sea.

Samples	Concentration of chemical elements (mg kg−1)
	Cu	Zn	Mn	Hg	As	Pb	Cd	Cr
body wall	2.13 ± 0.01	9.06 ± 0.14	23.82 ± 0.55	0.06 ± 0.01	5.64 ± 0.24	1.38 ± 0.21	0.05 ± 0.01	0.33 ± 0.11
anus	0.75 ± 0.06	7.91 ± 0.24	102.56 ± 0.07	0.04 ± 0.01	2.50 ± 0.22	0.10 ± 0.01	0.01 ± 0.01	0.41 ± 0.11
internal organ	1.43 ± 0.07	26.26 ± 0.56	51.49 ± 0.44	0.07 ± 0.02	2.94 ± 0.28	0.92 ± 0.31	0.06 ± 0.02	0.29 ± 0.07
intestines	7.16 ± 0.34	35.39 ± 0.84	170.30 ± 0.98	0.05 ± 0.02	6.58 ± 0.24	1.84 ± 0.24	0.11 ± 0.02	0.43 ± 0.21

Marketing survey on the residual of heavy metals contained in the A. leucoprocta    A marketing survey was performed in order to better understand the residual levels of harmful heavy metals in A. leucoprocta consumed in the local market. In general, there are three methods for removing the heavy metals accumulated in the body wall of A. leucoprocta: (1) citric acid (0.1 M) soaking for 48 h, (2) NaOH (0.5%) soaking for 12 h, (3) EDTA (5%) soaking for 48 h (Lin et al., 2016). A total of 29 samples, which were treated by different processing methods, were collected from the local markets in Xiangshan. The appearances of A.leucoprocta after being treated with the different methods are shown in Fig. 4. The appearance of fresh sea cucumber A. leucoprocta was rust red due to the accumulation of high concentrations of metal elements on its body wall. When the body wall of A. leucoprocta was treated by citric acid soaking, NaOH soaking and EDTA soaking, the appearances were turned to gray, brown and canary yellow, respectively. The residual levels of five heavy metals Hg, As, Pb, Cd and Cr in all samples were determined and analyzed. The results showed that the contents of Cd, Cr and Hg in all of the 29 samples were lower than the MRLs, while the concentrations of As (17 in 29 samples) and Pb (16 in 29 samples) exceeded the MRLs. Both As and Pb exceeded the MRLs in 14 samples. The average concentrations of As treated by three methods (0.58 ± 0.35, 1.58 ± 2.06, 0.64 ± 0.45 mg kg⁻¹ respectively) were all exceeded the MRLs and the concentration of Pb treated by citric acid and NaOH solution (0.55 ± 0.13 and 1.17 ± 1.08 mg kg⁻¹, respectively ) were both higher than the MRLs. The citric acid and EDTA soaking methods were more efficient for removing As and Pb than NaOH method. However, the concentrations of As or Pb in some processed samples still exceeded the MRLs. The levels of As and Pb in the sea cucumbers treated by citric acid method (4 in 8 samples) were higher than the MRLs. The residual concentrations of As for the four samples were in the range of 0.53 ± 0.06 to 1.33 ± 0.07 mg kg⁻¹, while Pb were in the range of 0.58 ± 0.04 to 0.75 ± 0.06 mg kg⁻¹. The sea cucumbers treated by NaOH soaking have residual concentration of As greater than MRLs (11 in 14) and Pb (10 in 14). The residual concentrations of As for the 11 samples were in the range of 0.53 ± 0.02 to 6.62 ± 0.16 mg kg⁻¹, while Pb were in the range of 0.61 ± 0.03 to 3.49 ± 0.12 mg kg⁻¹. Two of the 7 samples of sea cucumbers treated by EDTA soaking exceeded the MRLs for As and Pb. The residual concentrations of As for the two samples were 1.27 ± 0.13 and 1.30 ± 0.16 mg kg⁻¹, while Pb were 0.57 ± 0.04 and 0.67 ± 0.07 mg kg⁻¹, respectively.

Fig. 4.

The appearances of A. leucoprocta treated by different methods. A, fresh A. leucoprocta before treatment; B, treated by enzymatic hydrolysis coupling with citric acid soaking; C, treated by citric acid soaking; D, treated by NaOH soaking; E, treated by EDTA soaking

Removal of heavy metals in the body wall of A.leucoprocta    Based on the above results, the concentrations of As and Pb in the body wall exceeded the MRLs. Therefore, it is necessary to establish an efficient and stable processing method to remove the As and Pb from A. leucoprocta to ensure safety for the consumption of sea cucumbers. The body wall of sea cucumber secretes a mucus protein which adsorbs heavy metals from mud, and forms an impermeable structure, making chemical reagents difficult to chelate the heavy metals in both the inner and outer layers of the body wall. It may be feasible to hydrolyze the mucus protein with protease before removing heavy metals by chemical reagents, which loosened and created breaks in the body wall structure. EDTA and NaOH are not suggested for the treatment of the A. leucoprocta. Organic acids are commonly used as food additives. The method combing enzyme hydrolysis with acid soaking may be efficient for the removal of heavy metals. In this study, papain and pepsin were used as enzyme complex to hydrolyze the mucus protein of body wall with the addition of 0.15% (1:1, w/w) at 37°C for 45 min, followed by soaking in citric acid with 0.1 M for 54 h to remove the heavy metals. The resulting A. leucoprocta showed black appearance (Fig. 4B). The structure of the body wall was analyzed by scanning electron microscope. As shown in Fig. 5, compared with sample without treatment by papain and pepsin, the body wall after hydrolysis treatment by enzyme complex was looser. Fig. 6 showed that more than 90% of the As was removed after soaking for 30 h, while Pb required 42 h. The removal efficiencies of As and Pb were both enhanced to 98.22 ± 0.91 % and 94.11 ± 1.08% after soaking for 54 h. The heavy metals were likely to be removed more thoroughly by the combination of a composite proteolytic enzymatic hydrolysis followed by acid soaking. In order to evaluate the stability of the processing method, twenty-six fresh sea cucumbers of A. leucoprocta were treated by the above method. The concentrations of both As and Pb were decreased to below 0.5 mg kg⁻¹ in all samples. The highest residual concentration of Pb in the sample was decreased to 0.17 ± 0.01 mg kg⁻¹, which was almost one-third of MRLs. The highest residual concentration of As was 0.49 ± 0.01 mg kg⁻¹, and is also lower than the MRLs. This result shows that the developed processing method worked well. Sea cucumber A. leucoprocta treated by the above method meets the safety standards for commercial requirements. As shown in Fig. 7, all the four treating methods have the ability for reducing the heavy metals from the sea cucumber body walls. The average concentrations of heavy metals (As and Pb) after each treating solvents were significantly lower than their level in fresh sea cucumbers. Kruskal-Wallis one-way analysis of variance was carried out to check the differences between methods for removing heavy metals of As and Pb (data not shown). Compared with the samples without treatment, sea cucumbers treated by citric acid soaking, NaOH soaking, EDTA soaking and chemoenzymatic methods were significant difference ( p < 0.05) for heavy metals As and Pb. The chemoenzymatic method was significant difference compared with the other three chemical methods for the removal of heavy metals of As and Pb.

Fig. 5.

The scanning electron microscope of body wall of A. leucoprocta before treatment (A) and after hydrolyzed by papain and pepsin complex (B).

Fig. 6.

Removal ratio of heavy metals As and Pb in the body wall of A.leucoprocta by treating with the chemoenzymatic method.

Fig. 7.

Comparison of different methods for the removal of heavy metals in the body wall of A.leucoprocta. Different letters represent statistically significant difference ( p < 0.05) from Kruskal-Wallis one-way analysis of variances.

Conclusions

The sea cucumber A. leucoprocta, is commonly grown at the bottom of the East China Sea. The A. leucoprocta body wall is vulnerable to absorption and accumulation of heavy metals, which may be considered as a valuable bioindicator for evaluating and monitoring metals pollution in seawater. In this study, we investigated the distribution of eight heavy metals (Cu, Zn, Mn, Pb, As, Cd, Cr and Hg) in different individuals and body compartments of A. leucoprocta. The results indicated that the levels of Cd and Hg in A. leucoprocta were both very low (<0.23 mg kg⁻¹), while the levels of As and Pb were higher than the MRLs in China. The Mn, Zn, As and Pb tended to accumulate continuously with increasing weight of an individual, while this tendency was not observed for Hg. Due to the characteristics of secreting protein mucus and swallowing mud/seawater, the heavy metals of As, Pb in A. leucoprocta were mainly distributed in body wall and intestines. Addition of papain and pepsin in the processing method led to a better loosening and unfolding of the protein backbone. Both As and Pb concentrations were decreased sharply by treatment with papain/pepsin composite and citric acid soaking. This work provides a potential method for removal of heavy metals, laying a foundation for the development and utilization of A. leucoprocta for consumption.

Acknowledgements    We would like to thank Dr. Chun-Yue Weng for the analysis of data. This work was funded by the Scientific Research Fund of Zhejiang Provincial Education Department (No. Y201224739), and the Natural Science Foundation of Zhejiang Province (No. Q14B060008).

References

•  Ca,  E. S.,  Smith,  B. D., and  Rainbow,  P. S. (2006). Comparative biomonitors of coastal trace metal contamination in tropical South America (N. Brazil). Mar. Environ. Res., 61, 439-455.
•  Chen,  B.,  Liu,  J.,  Fan,  D.,  Liu,  M., and  Guo,  Z. (2016). Study of heavy metals in bottom sediments of the East China Seas (Bohai, Huanghai and the East China Sea): A review of cuttent statuas. Mar. Geol. Quater. Geol., 36, 43-56.
•  Culha,  S. T.,  Dereli,  H.,  Karaduman,  F. R., and  Culha,  M. (2016). Assessment of trace metal contamination in the sea cucumber (Holothuria tubulosa) and sediments from the Dardanelles Strait (Turkey). Environ. Sci. Pollut. R., 23, 11584-11597.
•  Eriksson,  H. and  Clarke,  S. (2015). Chinese market responses to overexploitation of sharks and sea cucumbers. Biol. Conserv., 184, 163-173.
•  Gu,  M.,  Ma,  H.,  Mai,  K.,  Zhang,  W.,  Bai,  N., and  Wang,  X. (2011). Effects of dietary beta-glucan, mannan oligosaccharide and their combinations on growth performance, immunity and resistance against Vibrio splendidus of sea cucumber, Apostichopus japonicus. Fish Shellfish Immunol., 31, 303-309.
•  Hu,  C.,  Xu,  Y.,  Wen,  J.,  Zhang,  L.,  Fan,  S., and  Su,  T. (2010). Larval development and juvenile growth of the sea cucumber Stichopus sp (Curry fish). Aquaculture, 300, 73-79.
•  James,  D. B. (2001). Twenty sea cucumbers from seas around India. Naga, 24, 4-8.
•  Jiang,  H.,  Tang,  S.,  Qin,  D.,  Chen,  Z.,  Wang,  J.,  Bai,  S., and  Mou,  Z. (2015). Heavy metals in sea cucumber juveniles from coastal areas of Bohai and Yellow seas, north China. [Research Support, Non-U.S. Gov't]. B. Environ. Contam. Tox., 94, 577-582.
•  King,  T. J.,  Sheridan,  R. S., and  Rice,  D. H. (2010). Analysis of Toxic Metals in Seafood Sold in New York State by Inductively Coupled Plasma Mass Spectrometry and Direct Combustion Analysis. J. Food Pro., 73, 1715-1720.
•  Li,  L.,  Tian,  X.,  Yu,  X., and  Dong,  S. (2016). Effects of Acute and Chronic Heavy Metal (Cu, Cd, and Zn) Exposure on Sea Cucumbers (Apostichopus japonicus). Biomed. Res. Int., 2016, 1-13.
•  Lin,  S.,  Xue,  Y.,  San,  E.,  Keong,  T.,  Chen,  L., and  Zheng,  Y. (2016). Extraction and Characterization of Pepsin Soluble Collagen from the Body Wall of Sea Cucumber Acaudina leucoprocta. J. Aquat. Food Prod. T., 26, 502-515.
•  Luo,  W.,  Lu,  Y.,  Wang,  T.,  Hu,  W.,  Jiao,  W.,  Naile,  J.,  Khim,  J., and  Giesy,  J. (2010). Ecological risk assessment of arsenic and metals in sediments of coastal areas of northern Bohai and Yellow Seas, China. Ambio., 39, 367-375.
•  McAloon,  K. M. and  Mason,  R. P. (2003). Investigations into the bioavailability and bioaccumulation of mercury and other trace metals to the sea cucumber, Sclerodactyla briareus, using in vitro solubilization. Mar. Pollutn. Bullet., 46, 1600-1608.
•  Morgano,  M. A.,  Rabonato,  L. C.,  Milani,  R. F.,  Miyagusku,  L., and  Balian,  S. C. (2011). Assessment of trace elements in fishes of Japanese foods marketed in São Paulo (Brazil). Food Control, 22, 778-785.
•  Morgano,  M. A.,  Rabonato,  L. C.,  Milani,  R. F.,  Miyagusku,  L., and  Quintaes,  K. D. (2014). As, Cd, Cr, Pb and Hg in seafood species used for sashimi and evaluation of dietary exposure. Food Control, 36, 24-29.
•  Nghia,  N. D.,  Lunestad,  B. T.,  Trung,  T. S.,  Son,  N. T., and  Maage,  A. (2009). Heavy Metals in the Farming Environment and in some Selected Aquaculture Species in the Van Phong Bay and Nha Trang Bay of the Khanh Hoa Province in Vietnam. B. Environ. Contam. Tox., 82, 75-79.
•  Noël,  L.,  Testu,  C.,  Chafey,  C.,  Velge,  P., and  Guérin,  T. (2011). Contamination levels for lead, cadmium and mercury in marine gastropods, echinoderms and tunicates. Food Control, 22, 433-437.
•  Rahman,  M. A. (2015). Global Sea Cucumber Fisheries: Their Culture Potentials, Bioactive Compounds and Sustainable Utilizations. IJACEBS., 1, 193-197.
•  Shulkin,  V. M.,  Presley,  B. J., and  Kavun,  V. I. (2003). Metal concentrations in mussel Crenomytilus grayanus and oyster Crassostrea gigas in relation to contamination of ambient sediments. Environ. Int., 29, 493-502.
•  Slater,  M. J. and  Jeffs,  A. G. (2010). Do benthic sediment characteristics explain the distribution of juveniles of the deposit-feeding sea cucumber Australostichopus mollis? J. Sea Res., 64, 241-249.
•  Wang,  J.,  Ren,  T.,  Han,  Y.,  Zhao,  Y.,  Liao,  M.,  Wang,  F., and  Jiang,  Z. (2015). The effects of dietary lead on growth, bioaccumulation and antioxidant capacity in sea cucumber, Apostichopus japonicus. Environ. Toxicol. Pharmacol., 40, 535-540.
•  Warnau,  M.,  Dutrieux,  S.,  Ledent,  G.,  B,  R.,  M,  A., and  Dúbois,  P. (2006). Heavy Metals in the Sea Cucumber Holothuria tubulosa (Echinodermata) from the Mediterranean Posidonia oceanica Ecosystem: Body Compartment, Seasonal, Geographical and Bathymetric Variations. Environ. Bioindic., 1, 268-285.
•  Wen,  J. and  Hu,  C. (2010). Elemental composition of commercial sea cucumbers (holothurians). Food Addit. Contam. B., 3, 246-252.
•  Xing,  J. and  Chia,  F. (1997). Heavy metal accumulation in tissue/organs of a sea cucumber, Holothuria leucospilota. Hydrobiologia, 123, 17-23.
•  Zhang,  L.,  Shi,  Z.,  Zhang,  J. P.,  Jiang,  Z. J.,  Wang,  F., and  Huang,  X. P. (2016). Toxic heavy metals in sediments, seawater, and molluscs in the eastern and western coastal waters of Guangdong Province, South China. Environ. Monit. Assess., 188, 1-14.
